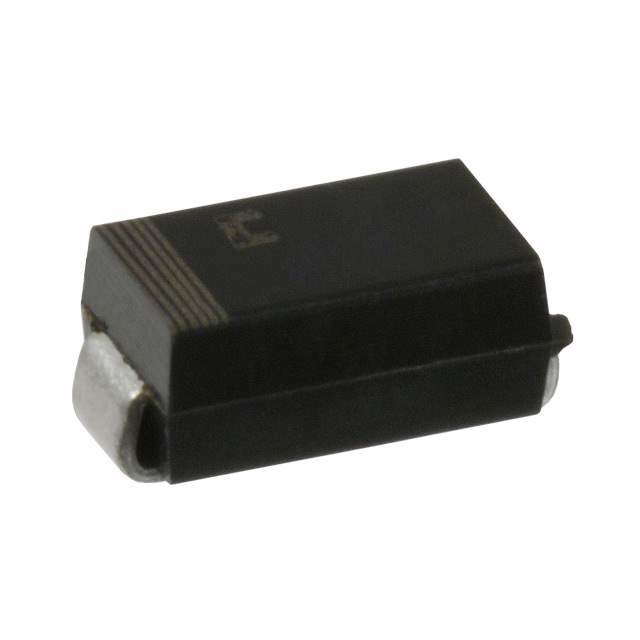

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 1028579-CDBA120-G
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBA120-G CAD Model

Description

The Comchip Technology CDBA120-G is a Schottky diode with a maximum reverse voltage of 20V and a forward voltage of 500mV @ 1A.

  • Average Rectified Current: 1A
  • Reverse Leakage Current: 500μA @ 20V
  • Mounting: SMD (SMT)
  • Package: DO-214AC (SMA)
  • Recovery: Fast recovery @ 200mA (Io)
  • Temperature Range: -65°C to 125°C
  • Package Quantity: 5k pcs
