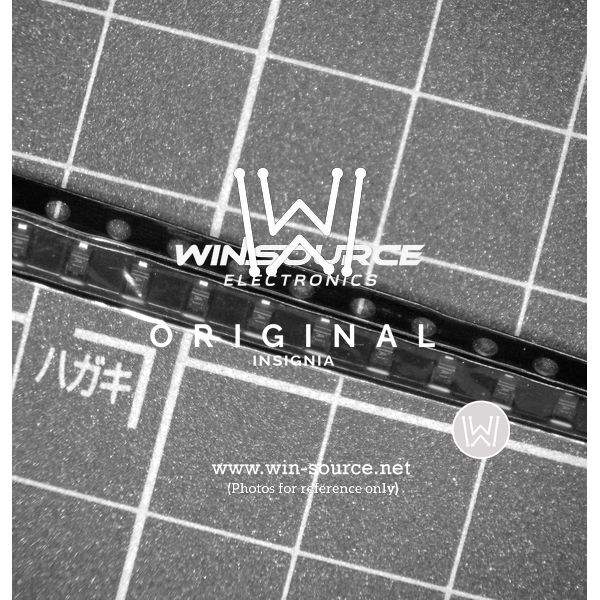

1N4148-G Real Image 1N4148-G real image25131
Same model may have multiple batches, images only for reference.
1N4148-G Real Image 1N4148-G real image25131
1N4148-G Real Image 1N4148-G real image25131
Same model may have multiple batches, images only for reference.

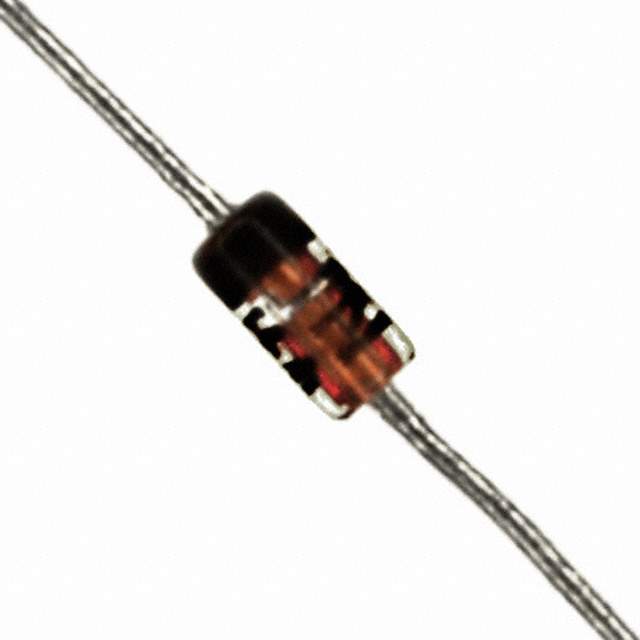

1N4148-G

Part No 1N4148-G
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA DO35 / Diode Standard 75 V 150mA Through Hole DO-35
Datasheet
1N4148-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 5 µA @ 75 V
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35
Operating Temperature - Junction -65°C ~ 200°C
Base Product Number 1N4148
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names -641-1313-1,641-1313-6INACTIVE,641-1313-6INACTIVEINACTIVE,641-1313-6-ND,1N4148G,-641-1313-3-ND,641-1313-3-ND,641-1313-2,641-1313-1,-641-1313-3,1N4148T-G,641-1313-3,-641-1313-2,641-1313-6,641-1313-6INACTIVEINACTIVE-ND
Standard Package 5,000
Win Source Part Number 960911-1N4148-G
Ultra Librarian 3D Model Ultra Librarian 1N4148-G CAD Model

Description

The 960911-1N4148-G is a standard diode type that is suitable for small signal applications.

  • Maximum DC Reverse Voltage: 75V
  • Average Rectified Current: 150mA
  • Forward Voltage: 1V @ 10mA
  • Reverse Leakage Current: 5μA @ 75V
  • Package Type: DO-204AH, DO-35, Axial
  • Operating Temperature Range: -65°C to 200°C
  • Supplier: Comchip Technology
  • Product Status: Obsolete
  • Alternative Parts: 1N4148-TP, 1N4151, 1N4448-TP, and 1N4151TR
