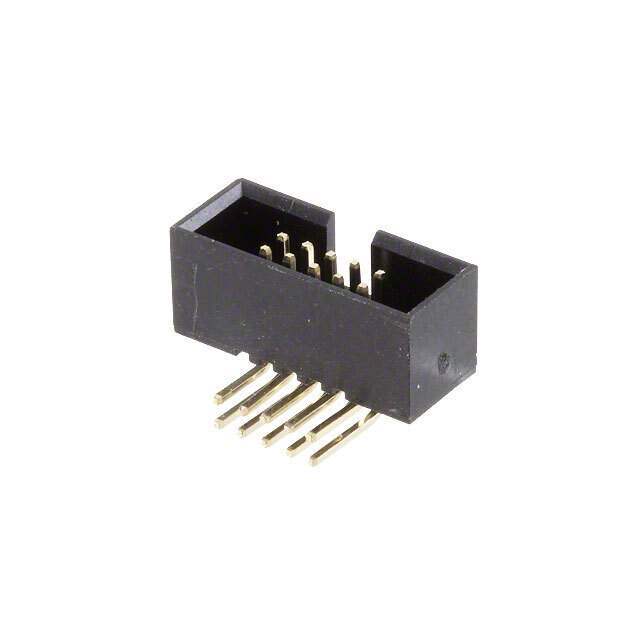

Same model may have multiple batches, images only for reference.
3220-10-0200-00 CNC Tech
Same model may have multiple batches, images only for reference.

3220-10-0200-00

Part No 3220-10-0200-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 1.27MM
Datasheet
3220-10-0200-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202497-3220-10-0200-00
Manufacturer CNC Tech
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 3220-10-0200-00 CAD Model

Description

The CNC Tech rectangular connector is a male pin header with 10 positions and 2 rows.

  • Type: Male Pin Header
  • Positions: 10
  • Rows: 2
  • Application: Board-to-Cable/Wire
  • Pitch: 0.050" (1.27mm)
  • Package: Tray
  • Manufacturer: CNC Tech
  • Status: Active
