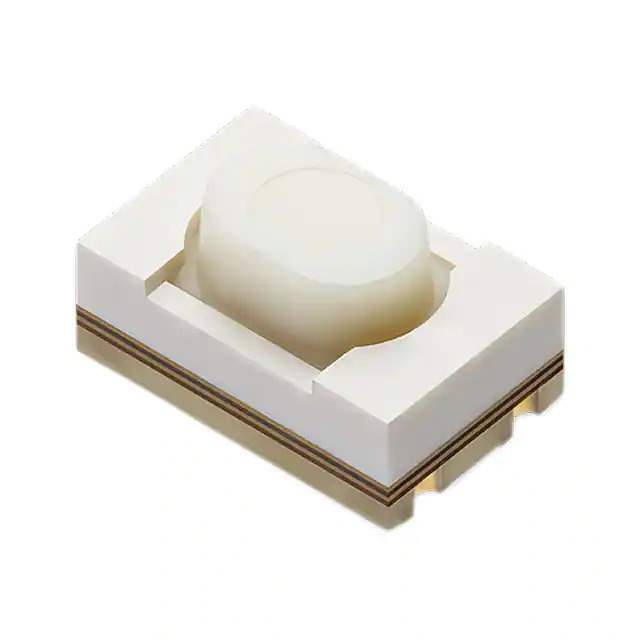

LS8J2M-T Real Image
Same model may have multiple batches, images only for reference.

LS8J2M-T

Part No LS8J2M-T
Manufacturer Citizen
Catalog Tactile Switches
Description SWITCH TACT SPST-NO 0.02A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Citizen
Series LS8J
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 12VDC
Actuator Type Oval Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 4.90mm x 3.20mm
Illumination Non-Illuminated
Operating Force 180gf
Switch Travel 0.20mm
Mechanical Life 50,000 Cycles
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 878253-LS8J2M-T
Ultra Librarian 3D Model Ultra Librarian LS8J2M-T CAD Model

Description

The LS8J2M-T is a surface mount tactile switch from Citizen's LS8J series.

  • Series: LS8J
  • Mounting Type: Surface Mount
  • Actuator Type: Oval Button
  • Switch Travel: 0.20mm
  • Operating Force: 180gf
  • Mechanical Life: 50,000 Cycles
  • Actuator Orientation: Top Actuated
  • Outline: 4.90mm x 3.20mm
  • Illumination: Non-Illuminated
  • Operating Temperature: Unspecified
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pcs
  • Product Status: Obsolete
  • MSL Level: 1 (Unlimited)
