Same model may have multiple batches, images only for reference.

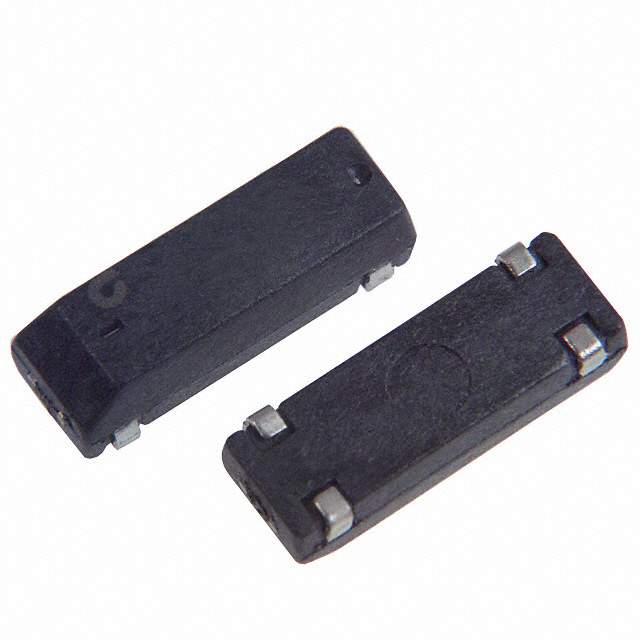

CM309S4.000MABJ-UT Real Image
Same model may have multiple batches, images only for reference.

CM309S4.000MABJ-UT

Part No CM309S4.000MABJ-UT
Manufacturer Citizen
Catalog Crystals
Description CM309S SMD Crystals 4MHZ 18PF Plastic SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accuracy 0.003 %
ESR (Equivalent Series Resistance) 150 Ω
Frequency 4 MHz
Frequency Stability 50 ppm
Frequency Tolerance 0.003 %
Height 3.7084 mm
Lead Free Lead Free
Length 12.3952 mm
Load Capacitance 18 pF
Max Operating Temperature 85 °C
Min Operating Temperature -10 °C
Mount Surface Mount
Number of Pins 4
Packaging Cut Tape
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Tolerance 0.003 %
Width 4.3942 mm
Win Source Part Number 1166525-CM309S4.000MABJ-UT
Categories Crystals
Manufacturer Citizen
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CM309S4.000MABJ-UT CAD Model

Description

The Citizen electronic component with Win Source Part Number 1166525-CM309S4.000MABJ-UT is a crystal with a frequency of 4 MHz and a frequency stability of 50 ppm.

  • Frequency: 4 MHz
  • Frequency Stability: 50 ppm
  • Tolerance: 0.003 percent
  • Accuracy: 0.003 percent
  • Load Capacitance: 18 pF
  • ESR: 150 Ω
  • Lead-Free: lead-free
  • RoHS Compliant: RoHS compliant
  • Supply and Demand Status: limited
  • Popularity: medium
