Same model may have multiple batches, images only for reference.

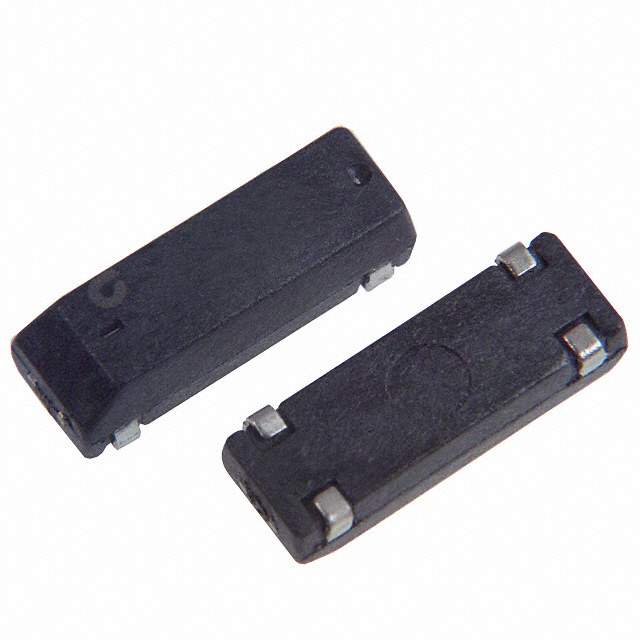

CM309S18.432MABJT Real Image
Same model may have multiple batches, images only for reference.

CM309S18.432MABJT

Part No CM309S18.432MABJT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 18.4320MHZ 18PF SMD / 18.432 MHz ±30ppm Crystal 18pF 50 Ohms 4-SOJ, 9.40mm pitch
Datasheet
CM309S18.432MABJT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series CM309S
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 9.40mm pitch
Dimension 0.488" L x 0.173" W (12.40mm x 4.40mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 300-8063-2,CM309S18.432MABJTR,300-8063-2-NDR,CM309S-18.432MABJ-UT,300-8063-1,CM309S18.432MABJUT,CM309S18432MABJTR,CM309S18432000ABJT,300-8063-6,CM309S18.432MABJ-UT,300-8652-2-ND,300-8652-1,300-8652-2,300-8652-1-ND,300-8063-1-NDR,300-8652-6,300-8063-6-NDR,300-8652-6-ND
Standard Package 1,000
Win Source Part Number 1164307-CM309S18.432MABJT
Ultra Librarian 3D Model Ultra Librarian CM309S18.432MABJT CAD Model

Description

The Citizen Finedevice Co Ltd CM309S18.432MABJT is a MHz crystal that comes in a 4-SOJ, 9.40mm pitch package.

  • Frequency: 18.432 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 18pF
  • ESR: 50 Ohms
  • Operating Temperature: -10°C to 60°C
  • Dimension: 0.488" L x 0.173" W (12.40mm x 4.40mm)
  • Manufacturer: Citizen Finedevice Co Ltd
  • Product Name: CM309S18.432MABJT
