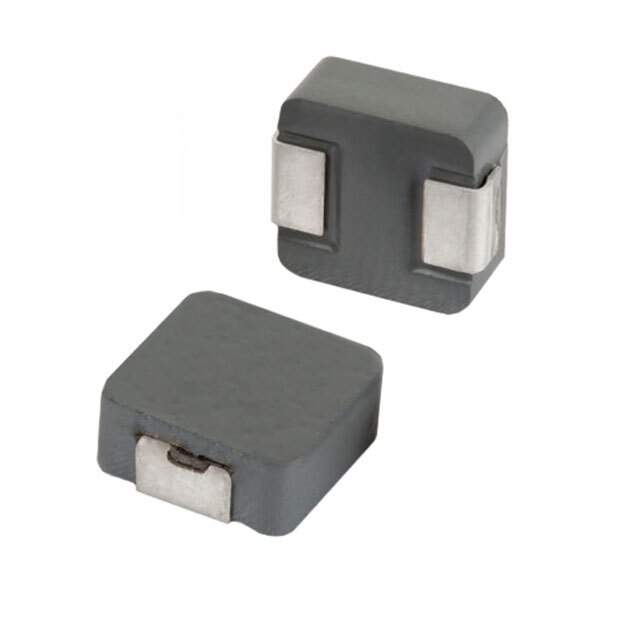

MGV06056R8M-10 Real Image
Same model may have multiple batches, images only for reference.

MGV06056R8M-10

Part No MGV06056R8M-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 6.8UH 5.5A 44.6MOHM SM / 6.8 µH Shielded Molded Inductor 5.5 A 44.6mOhm Max Nonstandard
Datasheet
MGV06056R8M-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Type Molded
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 44.6mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.287" L x 0.264" W (7.30mm x 6.70mm)
Height - Seated (Max) 0.209" (5.30mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 240-2915-1,240-2915-2,MGV06056R8M-10-ND,240-2915-6
Standard Package 800
Win Source Part Number 1327375-MGV06056R8M-10
Ultra Librarian 3D Model Ultra Librarian MGV06056R8M-10 CAD Model

Description

The Laird-Signal Integrity Products MGV06056R8M-10 is a molded, shielded fixed inductor that is designed for use in various electronic devices.

  • Size: 0.287" L x 0.264" W (7.30mm x 6.70mm)
  • Inductance: 6.8 µH
  • DC Resistance (DCR) Max: 44.6mOhm
  • Current Rating: 5.5 A
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Laird-Signal Integrity Products
