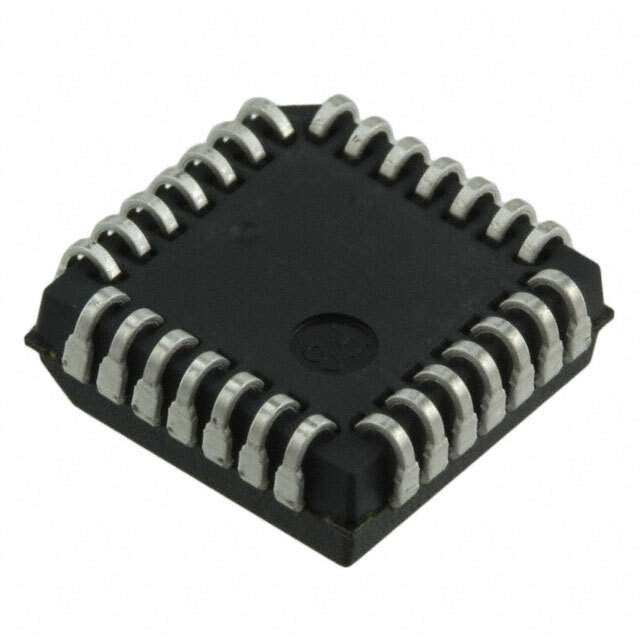

CS5101A-JL8Z Real Image
Same model may have multiple batches, images only for reference.

CS5101A-JL8Z

Part No CS5101A-JL8Z
Manufacturer Cirrus Logic Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16BIT 100/20KHZ 28-PLCC / 2-Channel Single ADC SAR 100ksps 16-bit Serial 28-Pin PLCC
Datasheet
CS5101A-JL8Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cirrus Logic Inc.
Packaging Tube
Part Status Obsolete(EOL)
Resolution 16
Sampling Rate 100k
Number of Inputs 2
Input Type Single Ended
Data Interface SPI
Configuration S/H-ADC
Number of Converters 1
Architecture SAR
Reference Type External
Operating Supply Voltage ±5V
Voltage - Supply, Digital ±5V
Operating Temperature Range 0°C ~ 70°C
Package 28-LCC (J-Lead)
Manufacturer Package 28-PLCC (11.51x11.51)
Win Source Part Number 771809-CS5101A-JL8Z
Popularity Medium
Supply and Demand Status Limited
Family Name CS5101
Introduction Date January 21, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CS5101A-JL8Z CAD Model

Description

The 771809-CS5101A-JL8Z from Cirrus Logic Inc. is an electronic component.

  • Supply and Demand: Limited
  • Status: Obsolete (EOL)
  • Family: CS5101
  • Resolution: 16
  • Sampling Rate: 100k
  • Configuration: S/H-ADC
  • Input Type: Single-ended
  • Architecture: SAR
  • Data Interface: SPI
  • Reference Type: External
  • Voltage Supply, Digital: ±5V
  • Operating Supply Voltage: ±5V
  • Package: 28-LCC (J-Lead)
  • Alternative Parts (cross-reference): CS5101A-JL8R, CS5101A-JP8, and CS5101A-JL8ZR
  • Introduction Date: January 21, 1998
  • Estimated EOL Date: Obsolete/end of life
  • ECCN: EAR99
