EC2A21H Cincon Electronics Co. LTD – Price, Stock & Datasheet

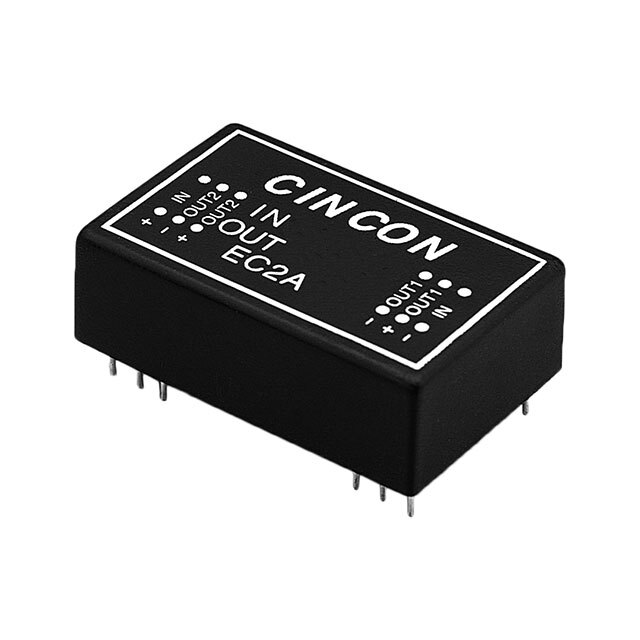

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr Cincon Electronics Co. LTD
Series EC2A (1.5W)
Packaging Tube
Part Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Power (Watts) 1.5 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Operating Temperature -25°C ~ 71°C
Efficiency 50%
Mounting Type Through Hole
Package / Case 24-DIP Module, 14 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number EC2A
Ultra Librarian 3D Model Ultra Librarian EC2A21H CAD Model
