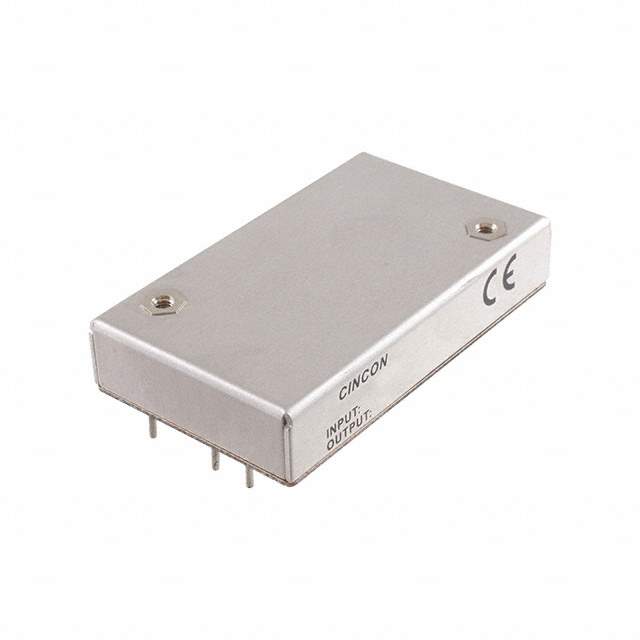

Same model may have multiple batches, images only for reference.

ECLB60W-24S15

Name: ECLB60W-24S15
Brand: Cincon Electronics Co. LTD
SKU: 1350077
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ECLB60W-24S15
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 60W / Isolated Module DC DC Converter 1 Output 15V 4A 9V - 36V Input
Datasheet	ECLB60W-24S15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	ECLB60W (60W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	4A
Power (Watts)	60 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	92%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm)
Control Features	Enable, Active High
Approval Agency	CE
Standard Number	60950-1
Base Product Number	ECLB60W
Standard Package	8
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350077-ECLB60W-24S15
Ultra Librarian 3D Model	Ultra Librarian ECLB60W-24S15 CAD Model

Alternative Products

Description

The ECLB60W series from Cincon Electronics Co. LTD is a 60W isolated module DC DC converter.

Features: Remote On/Off
Voltage Isolation: 1.5 kV
Size/Dimension: 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm)
Application: ITE (Commercial)
Package: 6-DIP Module Tray
ECCN: EAR99
Efficiency: 92%
Temperature Range: -40°C to 85°C (with derating)
