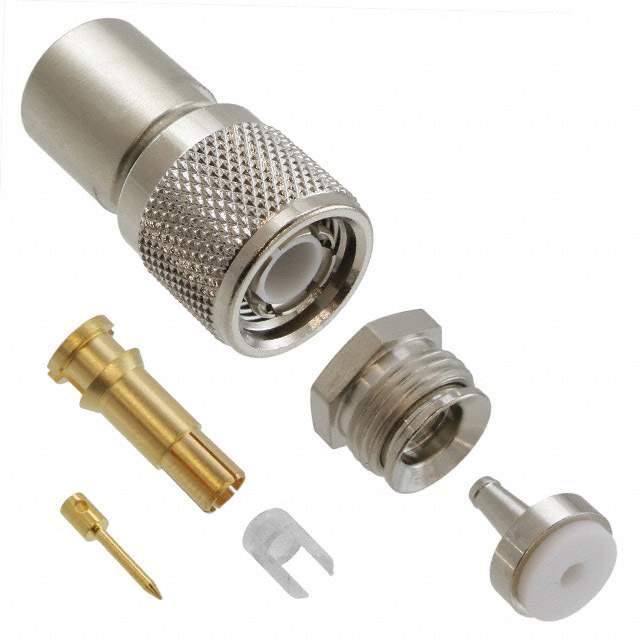

PL375-9 Real Image
Same model may have multiple batches, images only for reference.

PL375-9

Part No PL375-9
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN TRT PLUG STR SOLDER / TRT, Twinaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder
Datasheet
PL375-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Trompeter
Series 370
Package Bulk
Connector Style TRT, Twinaxial
Connector Type Plug, Male Pin (Concentric)
Contact Termination Solder
Shield Termination Wrench Clamp
Impedance Non-Constant
Mounting Type Free Hanging (In-Line)
Cable Group TWC-78-2, TWC-124-2, Times BL782, BL982, BL1242
Fastening Type Threaded
Frequency - Max 500 MHz
Number of Ports 1
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 400 V
Mating Cycles 500
Base Product Number PL375
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names PL375-9-ND,1097-1330
Standard Package 1
Win Source Part Number 1167248-PL375-9
Ultra Librarian 3D Model Ultra Librarian PL375-9 CAD Model

Description

The PL375-9 is a male coaxial connector from Cinch Connectivity Solutions Trompeter that has a threaded fastening type and is suitable for applications with a frequency range of up to 500 MHz.

  • Fastening Type: Threaded
  • Frequency Range: Up to 500 MHz
  • Voltage Rating: 400V
  • Impedance: Non-constant
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Shield Termination: Wrench Clamp
  • Suitable Cable Groups: TWC-78-2, TWC-124-2, Times BL782, BL982, BL1242
  • Mating Cycle: 500
  • Operating Temperature: -65°C to 165°C
