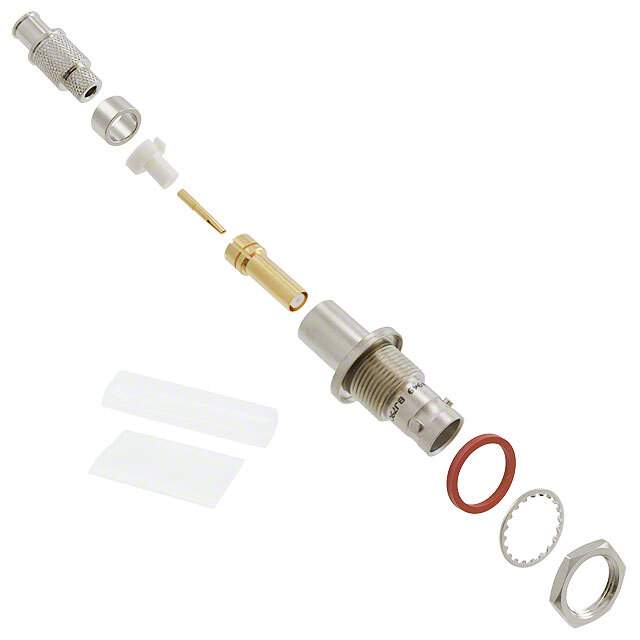

BJ79C-201 Real Image
Same model may have multiple batches, images only for reference.

BJ79C-201

Part No BJ79C-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN TRB JACK STR CRIMP / TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Panel Mount Crimp
Datasheet
BJ79C-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Trompeter
Series 70
Package Bulk
Connector Style TRB, Twinaxial/Triaxial
Connector Type Jack, Female Socket (Concentric)
Contact Termination Crimp
Shield Termination Crimp
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group M17/176-00002
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Three Lug
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 5 pcs - 1 Connector, 1 Heat Shrink, 1 Nut, 1 Strain Relief, 1 Washer
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 400 V
Mating Cycles 500
Base Product Number BJ79
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1097-1199,BJ79C201
Standard Package 1
Win Source Part Number 1066250-BJ79C-201
Ultra Librarian 3D Model Ultra Librarian BJ79C-201 CAD Model

Description

This electronic component is a connector that is part of the 70 series of products.

  • Category: Connectors, Interconnects>Coaxial Connectors (RF)
  • Win Source Part Number: 1066250-BJ79C-201
  • Features: three-lug design
  • Connector Type: jack, female socket (concentric)
  • Fastening: bayonet lock
  • Voltage Rating: 400 V
  • Maximum Frequency: 500 MHz
  • Body Color: silver
  • Body Material: brass
  • Shielded: crimp termination
  • Mounting: bulkhead - front side nut
  • Package Includes: 5 pcs - 1 Connector, 1 Heat Shrink, 1 Nut, 1 Strain Relief, 1 Washer
