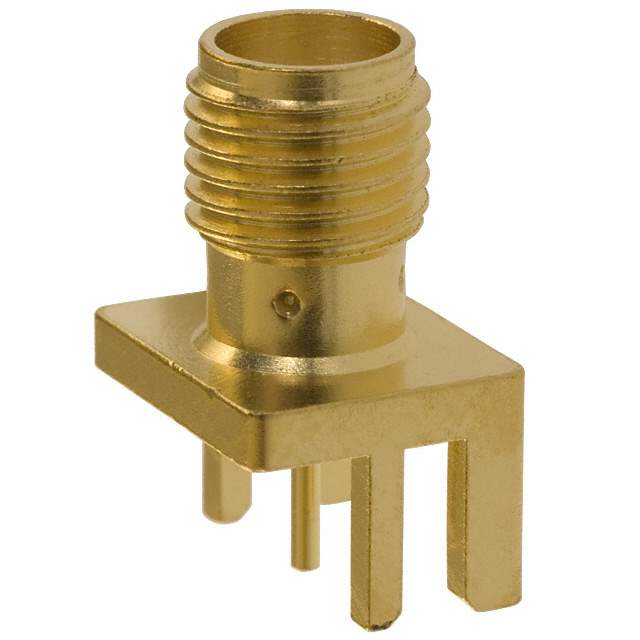

142-0701-881 Real Image
Same model may have multiple batches, images only for reference.

142-0701-881

Part No 142-0701-881
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18GHz
Number of Ports 1
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805806-142-0701-881
Ultra Librarian 3D Model Ultra Librarian 142-0701-881 CAD Model

Description

The Cinch Connectivity Solutions Johnson 805806-142-0701-881 is an SMA connector jack.

  • Socket Type: Female
  • Mounting Type: Board Edge, End Launch
  • Fastening Type: Threaded
  • Voltage Rating: 335V
  • Frequency Range: Up to 18GHz
  • Impedance: 50 Ohm
  • Material: Gold-finished Brass
  • Center Contact Material: Beryllium Copper, Gold Plated
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Termination Type: Solder
  • Housing Color: Gold
  • Supply and Demand Status: Balanced
  • MSL Level: Unlimited
