Same model may have multiple batches, images only for reference.

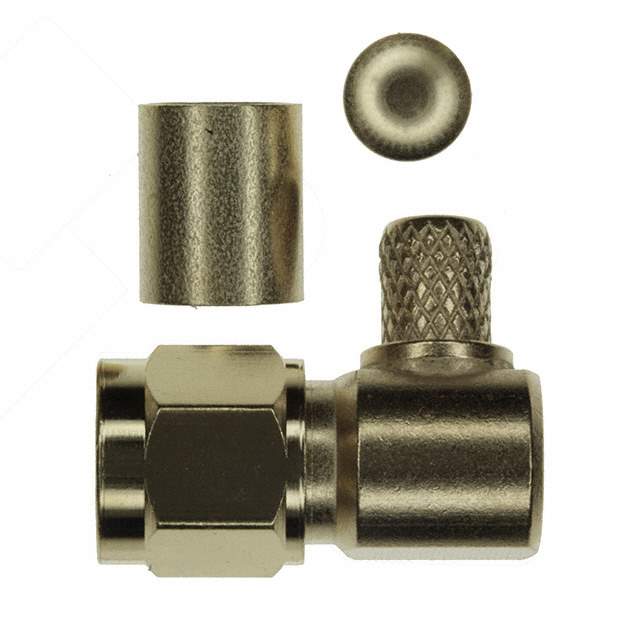

142-0408-101 Real Image
Same model may have multiple batches, images only for reference.

142-0408-101

Part No 142-0408-101
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA PLUG R/A 50 OHM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Style Free Hanging (In-Line), Right Angle
Cable Group RG-55, 142, 223, 400
Fastening Type Threaded
Frequency - Max 12.4GHz
Number of Ports 1
Housing Color Gold
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Sleeve
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Center Contact Material Brass
Voltage Rating 335V
Mating Cycles 500
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809759-142-0408-101
Ultra Librarian 3D Model Ultra Librarian 142-0408-101 CAD Model

Description

The Cinch Connectivity Solutions Johnson SMA Plug Male Pin Connector is a 50Ohm impedance connector with a frequency range of up to 12.4GHz. The connector has a voltage rating of 335V and is made of brass body material with a gold finish.

  • Mounting Style: Free Hanging (In-Line), Right Angle
  • Fastening Type: Threaded
  • Contact Termination: Solder
  • Shield Termination: Crimp
  • Connector Type: Plug, Male Pin
  • Connector Style: SMA
  • Includes: 3 pieces - 1 connector, 1 end cap, and 1 sleeve
  • Cable Groups: RG-55, 142, 223, and 400
  • Operating Temperature Range: -65°C to 165°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 25
  • MSL Level: 1 (Unlimited)
