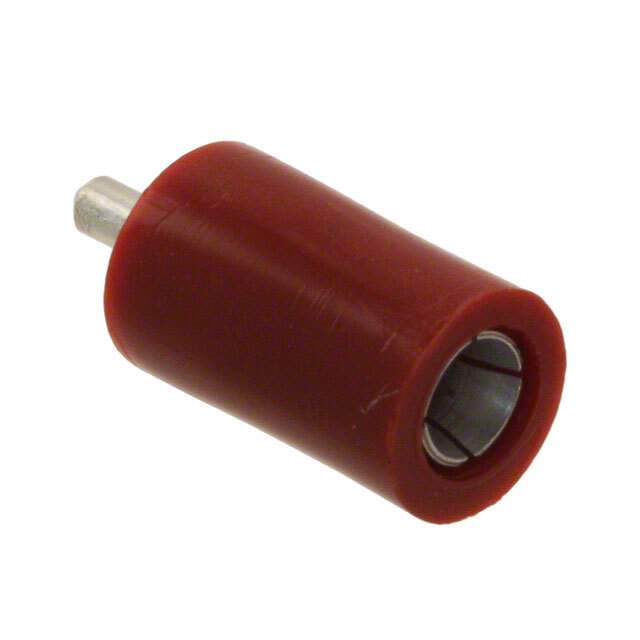

105-0852-001 Real Image
Same model may have multiple batches, images only for reference.

105-0852-001

Part No 105-0852-001
Manufacturer Cinch Connectivity Solutions
Catalog OEM Parts (0 - 9)
Description Right-angle Dual Port D-Sub Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Nylon, Polyamide
Color Red
Contact Material Copper
Contact Plating Silver
Current Rating 5 A
Gender Female
Housing Color Red
Housing Material Nylon
Insulation Insulated
Insulation Material Nylon
Lead Free Yes
Length 4.1 mm
Material Nylon, Polyamide
Max Current Rating 5 A
Mount Cable, Through Hole, Vertical
Number of Contacts 1
Number of Ports 1
Operating Supply Voltage 3.5 kV
Orientation Straight
Packaging Bulk
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 3.5 kV
Voltage Rating (DC) 3.5 kV
Win Source Part Number 1030910-105-0852-001
Categories OEM Parts(0-9)
Manufacturer Cinch Connectivity Solutions
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 105-0852-001 CAD Model

Description

The 1030910-105-0852-001 is a female connector from Cinch Connectivity Solutions.

  • Voltage Rating: 3.5 kV
  • Current Rating: 5 A
  • Housing Color: red
  • Material: nylon and polyamide
  • Insulated: true
  • Termination: solder
  • Market Status: shortage
  • Popularity: low
