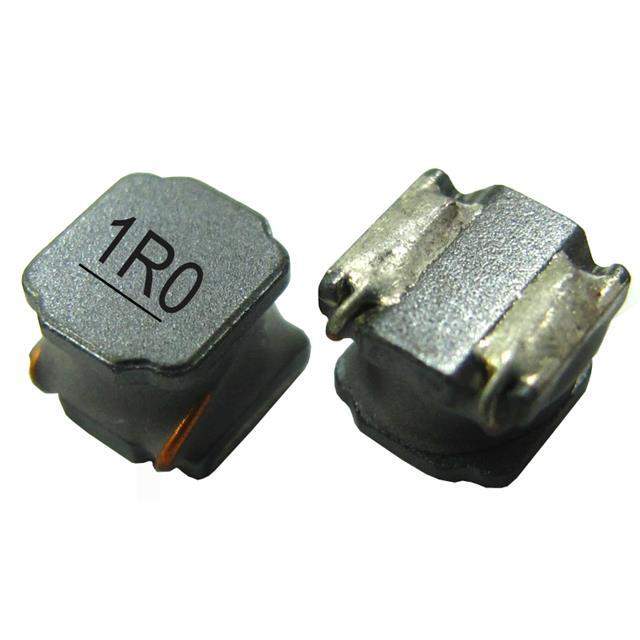

Same model may have multiple batches, images only for reference.

BWVF005050206R8T00

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BWVF005050206R8T00
Manufacturer	Chilisin
Catalog	Fixed Inductors
Description	INDUCTOR POWER / 6.8 µH Shielded Inductor 1.62 A 93mOhm 2020 (5050 Metric)
Datasheet	BWVF005050206R8T00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Chilisin Electronics
Series	BWVF
Package	Tape & Reel (TR)
Material - Core	Ferrite
Inductance	6.8 µH
Tolerance	±30%
Current Rating (Amps)	1.62 A
Current - Saturation (Isat)	1.98A
Shielding	Shielded
DC Resistance (DCR)	93mOhm
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2020 (5050 Metric)
Supplier Device Package	2020
Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.087" (2.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	553-BWVF005050206R8T00TR
Standard Package	2,000
Win Source Part Number	1185155-BWVF005050206R8T00
Ultra Librarian 3D Model	Ultra Librarian BWVF005050206R8T00 CAD Model

Alternative Products

Description

The Chilisin Electronics BWVF005050206R8T00 is a fixed inductor with a shielding feature.

Series: BWVF
Package Type: Tape & Reel
Inductance: 6.8 µH
Tolerance: ±30%
Height Seated (Max): 0.087" (2.20mm)
Standard Package: 2,000
Mounting Type: Surface Mount
Material Core: Ferrite
DC Resistance (DCR): 93mOhm
Supplier Device Package: 2020
Operating Temperature Range: -55°C to 125°C
Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
