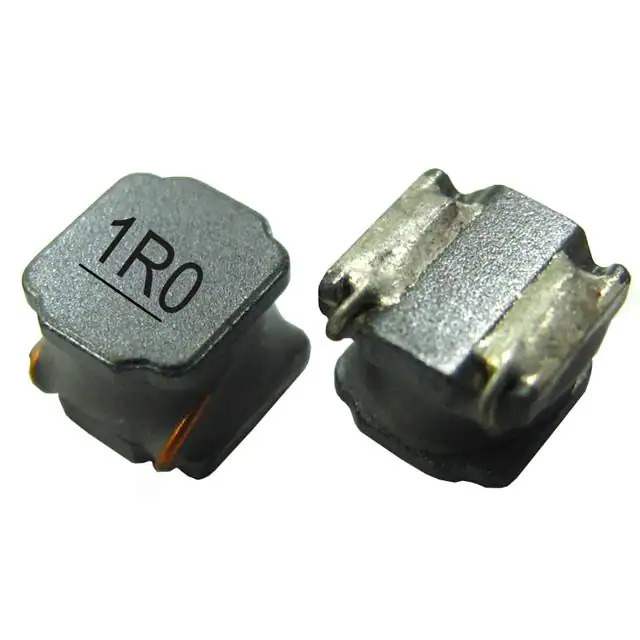

Same model may have multiple batches, images only for reference.
BWVF005050201R5T00 Chilisin
Same model may have multiple batches, images only for reference.

BWVF005050201R5T00

Part No BWVF005050201R5T00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BWVF005050201R5T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BWVF
Package Tape & Reel
Product Status Active
Type -
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 3.15 A
Current - Saturation (Isat) 4.41A
Shielding Shielded
DC Resistance (DCR) 23mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case 2020 (5050 Metric)
Supplier Device Package 2020
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.087" (2.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370322-BWVF005050201R5T00
Ultra Librarian 3D Model Ultra Librarian BWVF005050201R5T00 CAD Model

Description

The 1370322-BWVF005050201R5T00 is a fixed inductor manufactured by Chilisin Electronics. 1370322-BWVF005050201R5T00 is from Chilisin Electronics.

  • Series: BWVF
  • Package: 2020 (5050 Metric)
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±30%
  • Inductance: 1.5µH
  • Current Rating: 3.15A
  • DC Resistance: 23mOhm
  • Shielding: Shielded
  • Size: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Height: 0.087" (2.20mm)
  • Mounting: Surface mountable
  • Voltage Rating: 125V DC
  • Application: Power line
