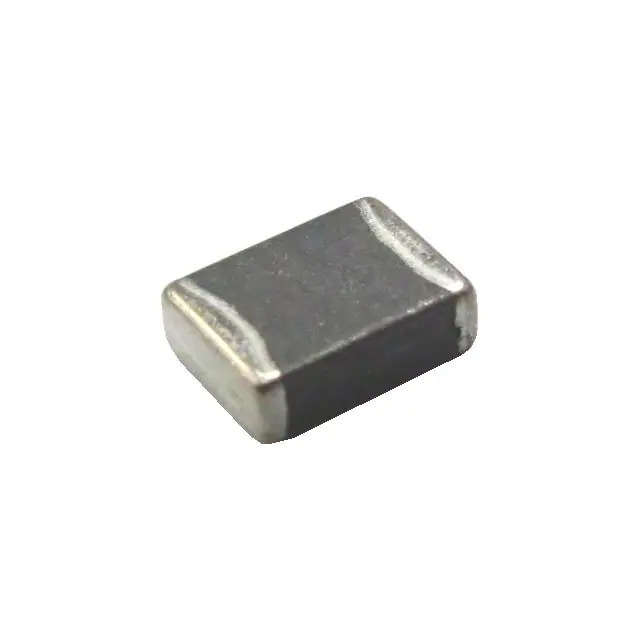

Same model may have multiple batches, images only for reference.
BKPE001608DZ2R2MA6 Chilisin
Same model may have multiple batches, images only for reference.

BKPE001608DZ2R2MA6

Part No BKPE001608DZ2R2MA6
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BKPE001608DZ2R2MA6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BKPE
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core -
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 300mA
Shielding Shielded
DC Resistance (DCR) 380mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 3 MHz
Features -
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369850-BKPE001608DZ2R2MA6
Ultra Librarian 3D Model Ultra Librarian BKPE001608DZ2R2MA6 CAD Model

Description

The BKPE001608DZ2R2MA6 is a fixed inductor from Chilisin Electronics' BKPE series.

  • Mounting Type: Surface Mount
  • Size: 0603 (1608 Metric)
  • Inductance: 2.2μH
  • Current Rating: 700mA
  • Tolerance: ±20%
  • DC Resistance: 380mOhm
  • Shielded: Yes
  • Height: 0.037" (0.95mm)
  • Temperature Range: -55°C to 125°C
