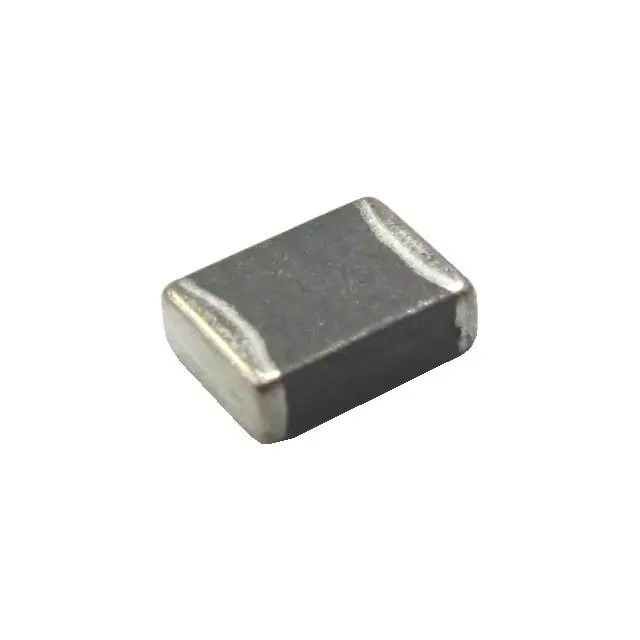

Same model may have multiple batches, images only for reference.
BKPB002016103R3MA6 Chilisin
Same model may have multiple batches, images only for reference.

BKPB002016103R3MA6

Part No BKPB002016103R3MA6
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BKPB002016103R3MA6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BKPB
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core -
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 350mA
Shielding Shielded
DC Resistance (DCR) 170mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 3 MHz
Features -
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370524-BKPB002016103R3MA6
Ultra Librarian 3D Model Ultra Librarian BKPB002016103R3MA6 CAD Model

Description

The 1370524-BKPB002016103R3MA6 is a multilayer fixed inductor manufactured by Chilisin Electronics.

  • Series: BKPB
  • Package: 0806 (2016 Metric)
  • Mounting Type: Surface Mount
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.039" (1.00mm)
  • Inductance: 3.3 µH
  • DC Resistance (DCR): 170mOhm
  • Shielding: Shielded
  • Current Rating: 850mA
  • Current Saturation (Isat): 350mA
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
