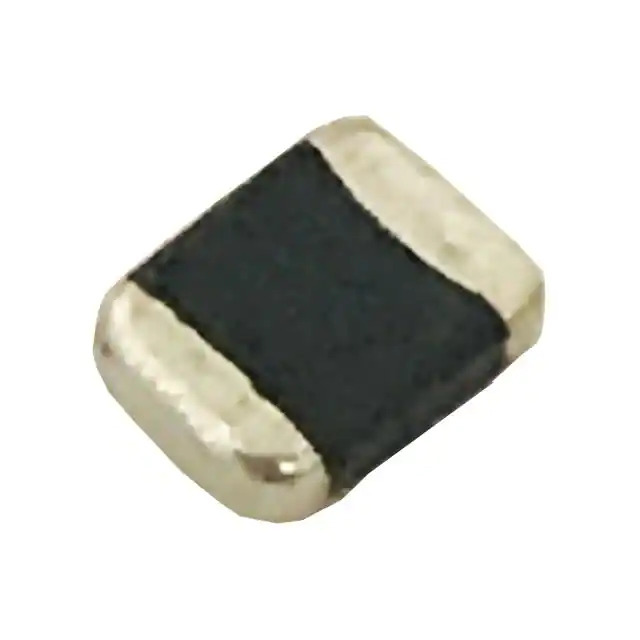

Same model may have multiple batches, images only for reference.
BDHE003225122R2MQ1 Chilisin
Same model may have multiple batches, images only for reference.

BDHE003225122R2MQ1

Part No BDHE003225122R2MQ1
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BDHE003225122R2MQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BDHE
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3.5A
Shielding Unshielded
DC Resistance (DCR) 73mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370594-BDHE003225122R2MQ1
Ultra Librarian 3D Model Ultra Librarian BDHE003225122R2MQ1 CAD Model

Description

The BDHE003225122R2MQ1 is a molded fixed inductor in the BDHE series from Chilisin Electronics.

  • Package Size: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Mounting Type: Surface Mount
  • Maximum Seated Height: 0.047" (1.20mm)
  • Inductance: 2.2 µH
  • Current Rating: 2.7 A
  • Shielding: Unshielded
  • DC Resistance (DCR): 73mOhm maximum
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • REACH: Unaffected
