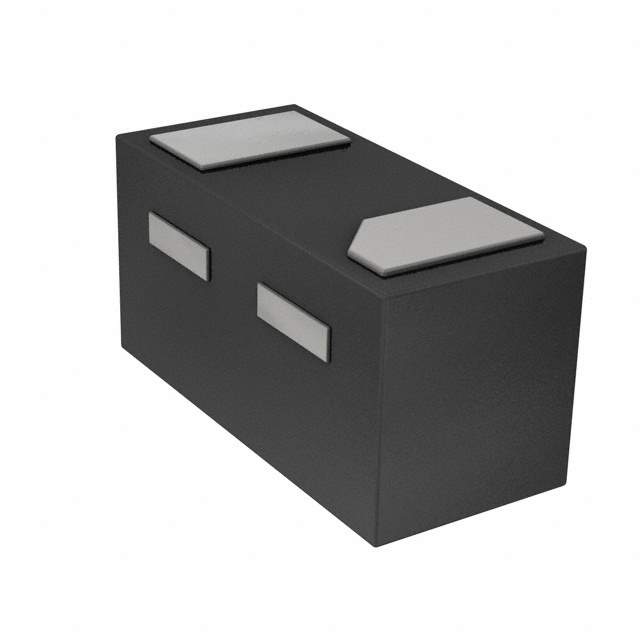

The CTLSH01-30L is a Schottky Barrier Rectifier manufactured by Central Semiconductor Corp. It is designed for applications requiring high efficiency and fast switching speeds.

Applications:

• Switching power supplies
• DC-DC converters
• Freewheeling diodes
• Reverse polarity protection

Features:

• Low forward voltage drop
• Fast switching speed
• High surge current capability
• Low reverse leakage current
• Surface mount package

Benefits:

• Improved efficiency in power conversion.
• Reduced power dissipation.
• Suitable for high-frequency applications.
• Compact design for space-saving applications.

Additional Details:

The CTLSH01-30L features a repetitive peak reverse voltage of 30V and a forward current of 1A. The typical forward voltage drop is 0.4V. The device is available in a small outline SMD package and is RoHS compliant. The fast switching speed minimizes switching losses and improves overall system performance.
