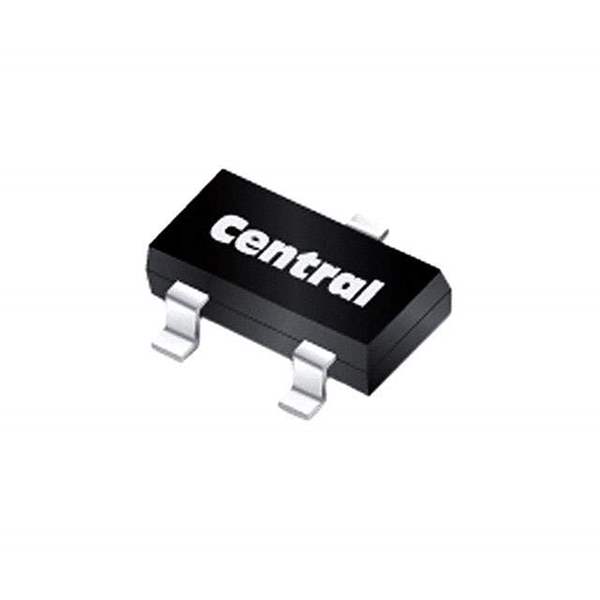

CMPSH-3S TR Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMPSH-3S TR

Part No CMPSH-3S TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23
Datasheet
CMPSH-3S TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Current - Reverse Leakage @ Vr 500nA @ 25V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 050398-CMPSH-3S TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CMPSH-3S TR CAD Model

Description

Overview

The CMPSH-3S TR is a high-performance Schottky diode characterized by its swift switching times and low forward voltage, making it indispensable for modern electronic solutions.

Applications

  • Mobile Devices
  • Battery-Powered Equipment
  • DC-DC Conversion

Features and Benefits

  • Swift Transition Speeds: Reduces delay in critical applications.
  • Low Forward Voltage: Enhances power efficiency and device longevity.
  • Compact Package: Allows for flexible design implementations.

The CMPSH-3S TR offers exceptional performance and reliability, ideal for power-sensitive and compact electronic devices.
