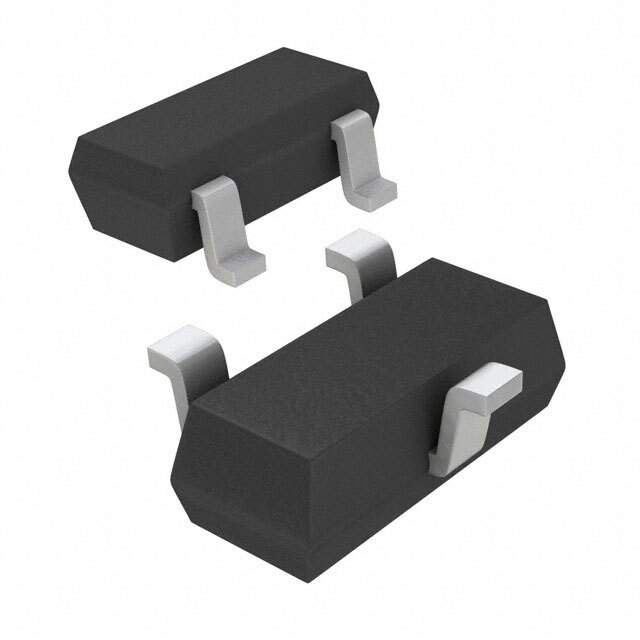

CMPSH-3CG TR Real Image
Same model may have multiple batches, images only for reference.

CMPSH-3CG TR

Part No CMPSH-3CG TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23
Datasheet
CMPSH-3CG TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 500nA @ 25V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 1029685-CMPSH-3CG TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMPSH-3CG TR CAD Model

Description

The CMPSH-3CG TR is a Schottky diode manufactured by Central Semiconductor Corp.

  • Voltage - DC Reverse (Vr) (Max): 30V
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 100mA
  • Recovery Speed: 5ns
  • Current Leakage: 500nA @ 25V
  • Diode Configuration: pair of common cathode
  • Average Rectified Current: 100mA per diode
  • Case/Package: SOT-23
  • Category: Discrete Semiconductor Products
  • Status: active
  • Popularity: medium
  • Packaging: reel-tray
  • Supply and Demand Status: balanced
