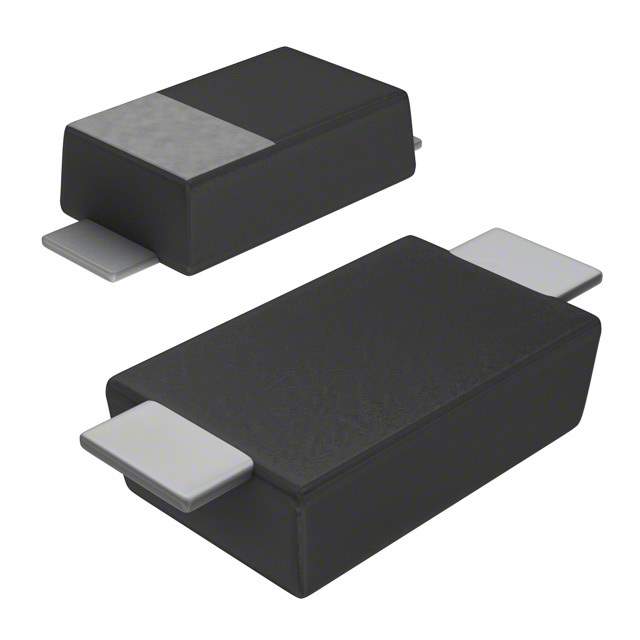

The CMMSH1-100 is a surface-mount Schottky Barrier Rectifier Diode manufactured by Central Semiconductor Corp. It's designed for high-frequency applications that require fast switching speeds and low forward voltage drop. The device is commonly used in circuits where efficiency and minimal power loss are critical.

Applications

• Switching Power Supplies: As a rectifier in high-frequency switching power supplies.
• DC-DC Converters: In voltage step-up and step-down circuits.
• Reverse Polarity Protection: Preventing damage from incorrect power supply connections.
• Free-wheeling Diode: Protecting inductive loads, such as relays and motors, from voltage spikes.
• Clamping Circuits: Limiting voltage levels in sensitive electronic circuits.

Features

• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.
• Fast Switching Speed: Reduces switching losses in high-frequency applications.
• Surface Mount Package: Facilitates automated assembly and compact designs.
• High Surge Current Capability: Can withstand high current surges without degradation.
• Low Reverse Leakage Current: Reduces standby power consumption.

Benefits

• Improved Efficiency: Minimizes power loss in power conversion circuits.
• Reduced Heat Dissipation: Low forward voltage drop reduces heat generation.
• Compact Design: Surface mount package enables smaller and denser circuit layouts.
• Enhanced Reliability: Withstands transient voltage and current surges.
• Simplified Assembly: Suitable for automated pick-and-place assembly.

Additional Details

The CMMSH1-100 has a maximum repetitive peak reverse voltage of 100V and a maximum average forward rectified current of 1A. The typical forward voltage drop is typically 0.8 V at 1A. The device is available in a surface mount package. The fast reverse recovery time of Schottky diodes makes them ideal for high-frequency applications where switching losses need to be minimized. The CMMSH1-100 offers a balance of performance, size, and cost-effectiveness for a wide range of applications.
