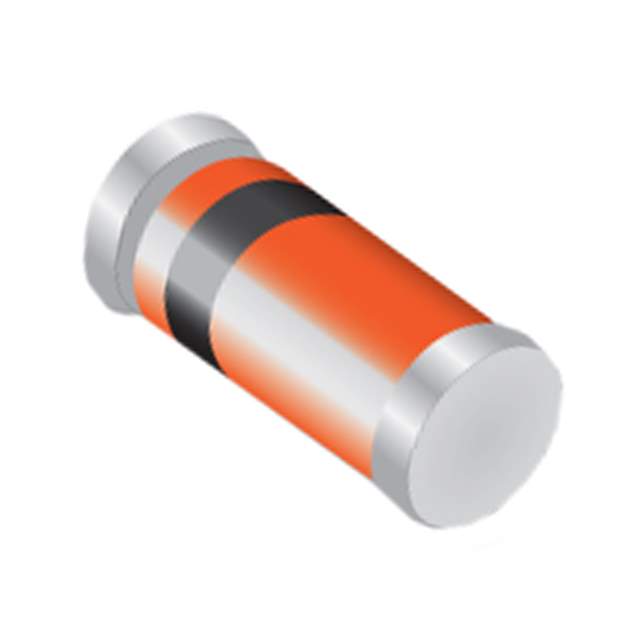

The CLL5235B TR PBFREE is a Zener diode manufactured by Central Semiconductor Corp. It's designed to provide stable reverse voltage regulation in various electronic circuits. The 'TR PBFREE' designation indicates that it is lead-free and suitable for applications requiring RoHS compliance. Zener diodes are specifically engineered to operate in the reverse breakdown region, maintaining a near-constant voltage across their terminals over a wide range of current variations. This characteristic makes them ideal for voltage regulation, voltage clipping, and overvoltage protection.

Applications

• Voltage Regulation: Maintaining a stable output voltage in power supplies and other voltage-sensitive circuits.
• Voltage Clipping: Limiting the voltage to a specific level to protect sensitive components.
• Overvoltage Protection: Shunting excess voltage to ground to prevent damage to downstream circuitry.
• Reference Voltage: Providing a stable reference voltage for analog circuits and instrumentation.
• Transient Voltage Suppression: Protecting circuits from voltage spikes and surges.

Features

• Precise Zener Voltage: Offers a tightly controlled Zener voltage for accurate regulation.
• Low Reverse Leakage Current: Minimizes current leakage in the reverse direction, improving efficiency.
• Sharp Breakdown Characteristic: Provides a well-defined breakdown voltage for reliable operation.
• Pb-Free Finish: Complies with RoHS requirements for environmental friendliness.
• Surface Mount Package: Facilitates automated assembly and saves board space.

Benefits

• Stable Voltage Regulation: Ensures consistent performance of voltage-sensitive circuits.
• Enhanced Circuit Protection: Protects components from overvoltage and transient voltage conditions.
• Improved Reliability: Central Semiconductor's rigorous quality control ensures high reliability.
• Environmental Compliance: Pb-Free finish meets environmental regulations.
• Easy Integration: Surface mount package simplifies assembly.

Additional Details

The CLL5235B TR PBFREE comes in a small surface mount package like SOD-123. Important specifications include the Zener voltage (VZ), reverse leakage current (IR), and power dissipation (PD). Designers should consult the datasheet for detailed electrical characteristics, temperature coefficients, and derating curves. Typical applications are in power supplies, instrumentation, and communication equipment where stable voltage regulation and overvoltage protection are critical.
