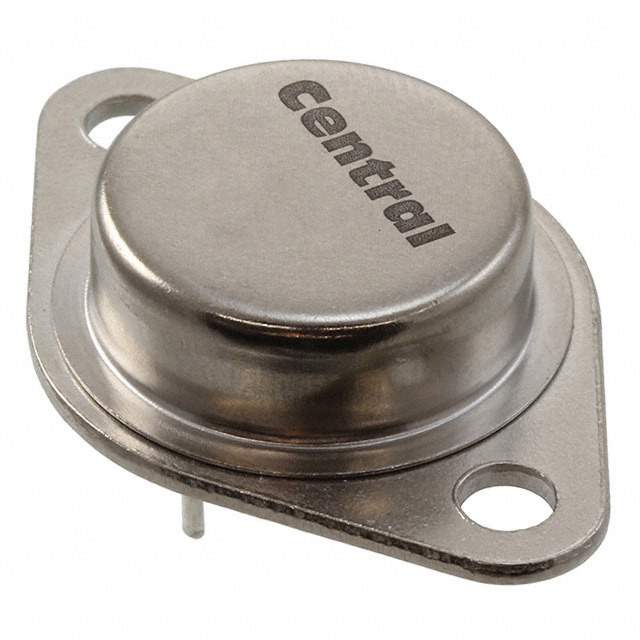

2N6055 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Tube
Transistor Type NPN
Current - Collector (Ic) (Maximum) 8A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) at Ib, Ic 3V at 80mA, 8A
Current - Collector Cutoff (Maximum) 500μA
DC Current Gain (hFE) (Minimum) at Ic, Vce 750 at 4A, 3V
Maximum Power 100W
Frequency - Transition 4MHz
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-204AA, TO-3
Supplier Device Package TO-3
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1124043-2N6055
Manufacturer Homepage www.mospec.com.tw
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 2N6055 CAD Model

Description

The Central Semiconductor Corp 2N6055 is an NPN transistor with a frequency transition of 4MHz.

  • Package: TO-3
  • Mounting Style: Through-hole
  • Temperature Range: -65°C to 200°C
  • Current - Collector (Ic) (Maximum): 8A
  • Voltage - Collector Emitter Breakdown (Maximum): 60V
  • Current - Collector Cutoff (Maximum): 500μA
  • Manufacturer Pack Quantity: 20
  • MSL Level: 1 (unlimited)
  • Vce Saturation (Maximum) @ Ib, Ic: 3V @ 80mA, 8A
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 750 @ 4A, 3V
  • Applications: Industrial
