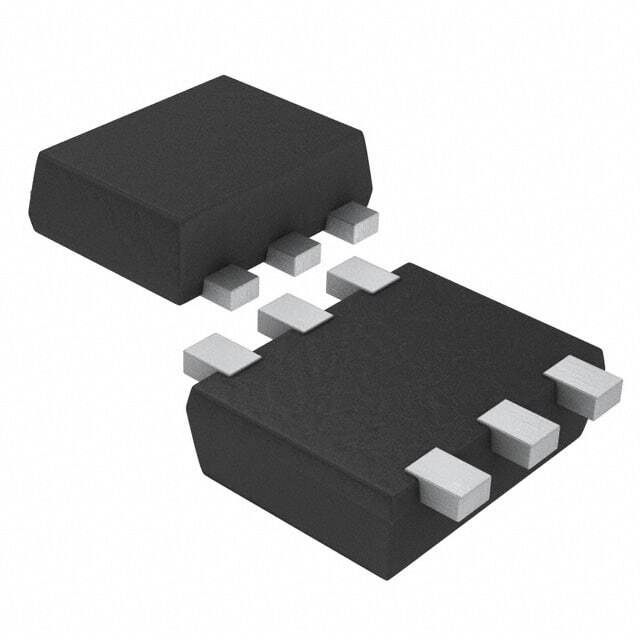

UPG2422TK-E2-A CEL
Same model may have multiple batches, images only for reference.

UPG2422TK-E2-A

Part No UPG2422TK-E2-A
Manufacturer CEL
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 6MINIMOLD / RF Switch IC 802.11a/b/g/n SPDT 6 GHz 50Ohm 6-Minimold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr CEL
Package Tape & Reel (TR)
Product Status Obsolete
RF Type 802.11a/b/g/n
Topology Reflective
Circuit SPDT
Frequency Range 50MHz ~ 6GHz
Isolation 28dB
Insertion Loss 0.55dB
Test Frequency 6GHz
P1dB 31dBm
IIP3 57dBm
Impedance 50Ohm
Temperature Range - Operating -45°C ~ 85°C
Package / Case 6-SMD, Flat Leads
Supplier Device Package 6-Minimold
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 1152678-UPG2422TK-E2-A
Ultra Librarian 3D Model Ultra Librarian UPG2422TK-E2-A CAD Model

Description

The CEL electronic component is an RF switch and the Win Source Part Number for this product is 1152678-UPG2422TK-E2-A.

  • Category: RF/IF and RFID
  • Packaging: Tape & Reel (TR)
  • Standard Package: 5,000
  • Test Frequency: 6GHz
  • Frequency Range: 50MHz ~ 6GHz
  • Insertion Loss: 0.55dB
  • Isolation: 28dB
  • Circuit: SPDT
  • Topology: Reflective
  • IIP3: 57dBm
  • P1dB: 31dBm
  • RF Type: 802.11a/b/g/n
  • Package/Case: 6-SMD, Flat Leads
  • Supplier Device Package: 6-Minimold
  • Temperature Range: -45°C ~ 85°C
