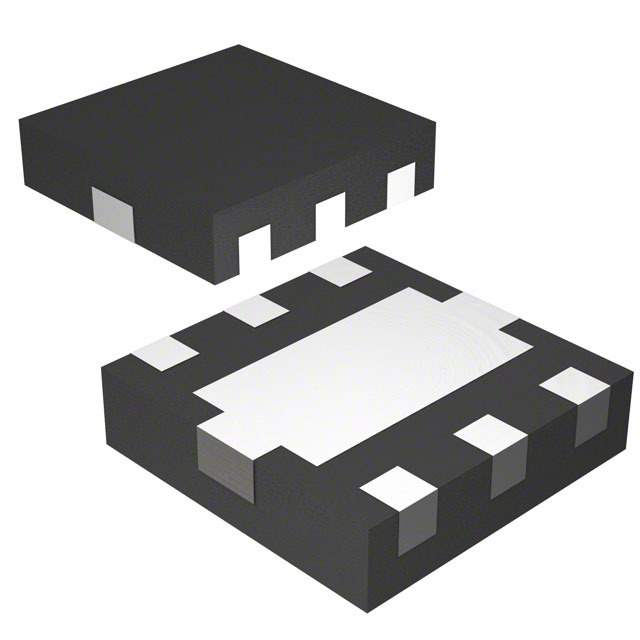

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency 2.4GHz to 2.5GHz
P1dB 18dBm (63.1mW) to 20dBm (100mW)
RF Type Bluetooth
Supply Voltage - Operating 2.7 V to 3.6 V
Operating Supply Current 65mA to 70mA
Test Frequency 450MHz
Case / Package 6-TSON
Win Source Part Number 115157-UPG2314T5N-E2-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPG2314T5N-E2-A CAD Model

Description

The CEL 115157-UPG2314T5N-E2-A is a high-performance RF amplifier that operates in the frequency range of 2.4GHz to 2.5GHz.

  • Applications: It is designed for use in Bluetooth applications and has a P1dB of 18dBm to 20dBm.
  • Voltage: The amplifier has a supply voltage range of 2.7V to 3.6V
  • Operating Supply Current: and an operating supply current of 65mA to 70mA.
  • Package: It is packaged in a 6-TSON case and is commonly used in RF/IF and RFID applications.
  • Popularity: The CEL 115157-UPG2314T5N-E2-A is a popular choice for designers due to its high performance and reliability.
  • Status: However, it is an obsolete product and has limited supply in the market.
