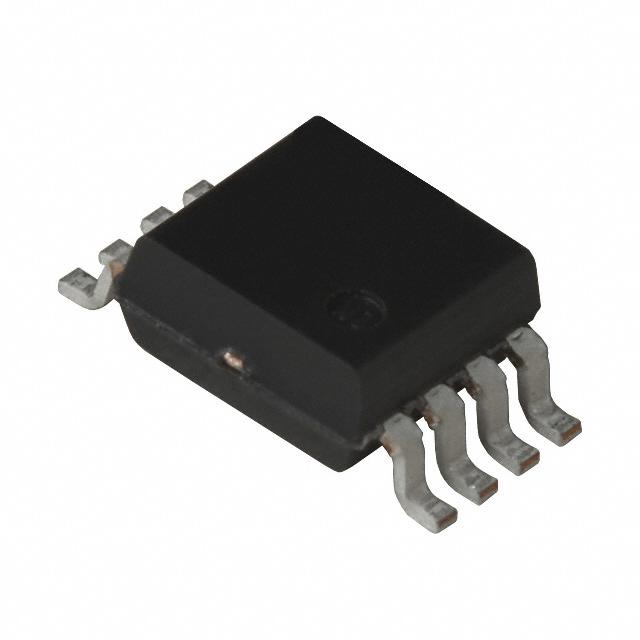

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Function Prescaler
Frequency 500MHz ~ 3GHz
RF Type Broadcast Television, DBS, UHF
Secondary Attributes Divide by 4
Mounting Type Surface Mount
Package / Case 8-SSOP (0.126", 3.20mm Width)
Supplier Device Package 8-SSOP
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 389742-UPB1510GV-E1-A
Ultra Librarian 3D Model Ultra Librarian UPB1510GV-E1-A CAD Model

Description

The UPB1510GV-E1-A is a prescaler IC designed for RF and wireless applications.

  • It operates in a frequency range of 500MHz to 3GHz, making it suitable for various broadcast television, DBS, and UHF applications.
  • The UPB1510GV-E1-A is capable of dividing the input frequency by 4, providing a lower frequency output for further processing.
  • It is surface mountable and comes in an 8-SSOP package, which is compact and easy to install.
  • The UPB1510GV-E1-A is an obsolete product, but it remains a reliable choice for applications that require frequency division.
  • With a moisture sensitivity level of 1, this IC can withstand unlimited exposure to moisture.
