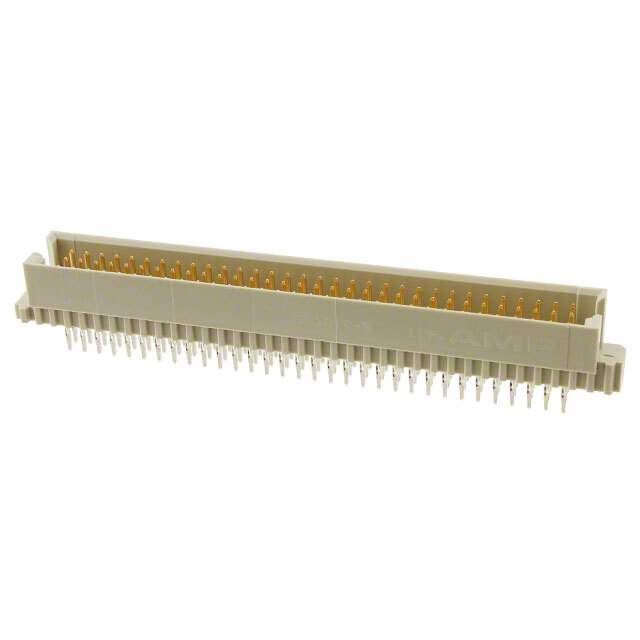

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit Application Signal
Color Grey
Connector Type Plug
Contact Material Bronze
Contact Plating Tin, Gold
Current Rating 100 mA
Depth 11.1 mm
ELV Non-Compliant
Gender Male
Height 11.489512 mm
Housing Color Grey
Housing Material Polyester
Insulation Material Glass
Insulation Resistance 1 GΩ
Lead Free Contains Lead
Lead Length 5.588 mm
Lead Pitch 2.54 mm
Length 95 mm
Make First / Break Last Yes
Max Current Rating 3 A
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Columns 32
Number of Contacts 96
Number of Positions 96
Number of Rows 3
Number of Signal Positions 96
Orientation Straight
Packaging Bulk
PCB Mounting Orientation Vertical
PCB Thickness 2.3622 mm
Pitch 2.54 mm
Plating Thickness 127 nm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.54 mm
Sealable No
Shielding Unshielded
Tail Length 5.59 mm
Termination Press-Fit
Termination Post Length 5.59 mm
Width 11.1 mm
Win Source Part Number 1202791-536019-5
Categories DIN 41612 Connectors
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 536019-5 CAD Model

Description

The TE Connectivity 1202791-536019-5 is a 96 position, 3-row, plug connector with a pitch of 2.54mm.

  • Positions: 96
  • Rows: 3
  • Pitch: 2.54mm
  • Current Rating: 100mA
  • Maximum Current Rating: 3A
  • Contact Material: Bronze
  • Contact Plating: Tin and Gold
  • Shielding: Unshielded
  • Height: 11.489512mm
  • Width: 11.1mm
  • Length: 95mm
  • Housing Material: Polyester
  • Insulation Material: Glass
  • Connector Type: DIN 41612
  • Mounting: Through Hole
  • Color: Grey
  • Orientation: Straight
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: 125°C
