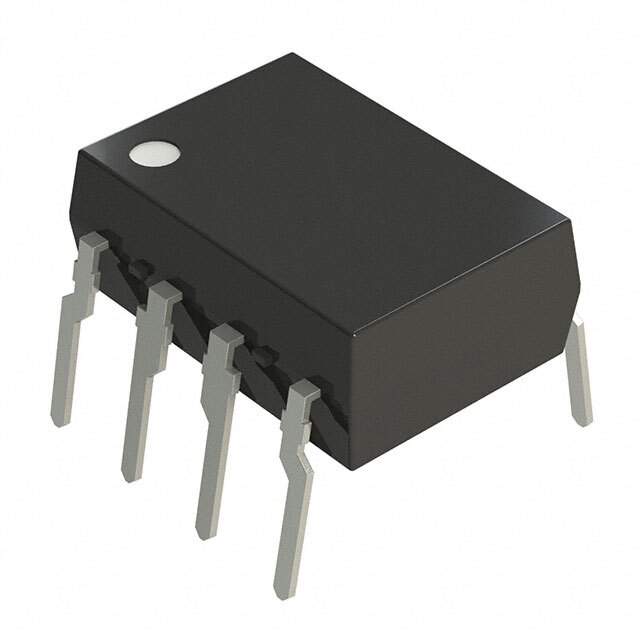

PS9617-A Real Image
Same model may have multiple batches, images only for reference.

PS9617-A

Part No PS9617-A
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 8DIP / Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin PDIP
Datasheet
PS9617-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 15kV/μs
Input Type DC
Output Type Open Collector
Output Current per Channel 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Maximum) 75ns, 75ns
Rise / Fall Time (Typ) 20ns, 10ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Maximum) 30mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Package 8-DIP
Win Source Part Number 792582-PS9617-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS9617
Introduction Date May 23, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PS9617-A CAD Model

Description

The CEL PS9617-A is a single channel open collector output optocoupler. CEL.

  • Data Rate: 10Mbps
  • Operating Supply Voltage: 4.5V to 5.5V
  • Isolation Voltage: 5000Vrms
  • Common Mode Transient Immunity: 15kV/μs
  • Rise Time: 20ns
  • Fall Time: 10ns
  • Package: 8-DIP (0.300", 7.62mm)
  • Status: Obsolete
