PS9402-E3 CEL
Same model may have multiple batches, images only for reference.

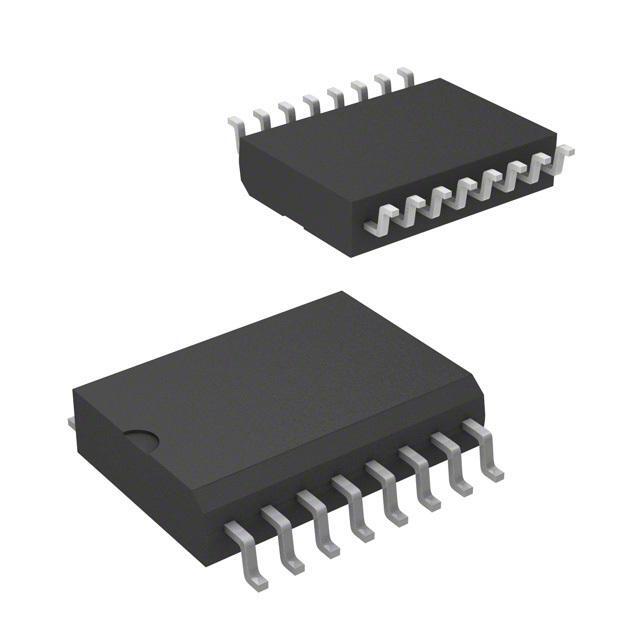

PS9402-E3

Part No PS9402-E3
Manufacturer CEL
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 16SSOP
Datasheet
PS9402-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 200ns, 200ns
Pulse Width Distortion (Max) 100ns
Rise and Fall Time 50ns, 50ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Forward Voltage 1.56V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package 16-SSOP
Approvals CSA, UL
Win Source Part Number 210251-PS9402-E3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS9402-E3 CAD Model

Description

The CEL PS9402-E3 is an optical coupling technology-based optocoupler that comes in a 16-SSOP package.

  • Product: CEL PS9402-E3
  • Package: 16-SSOP
  • Current Output High: 2A
  • Current Output Low: 2A
  • Common Mode Transient Immunity: 25kV/μs
  • Isolation Voltage: 5000Vrms
  • Temperature Range: -40°C to 110°C
  • Rise Time: 50ns
  • Fall Time: 50ns
  • Continuous Forward Current-Max: 25mA
  • Alternative Parts: PC929JOOOOOF, PS9402-V-E3-AX, and PS9402-V-E3
