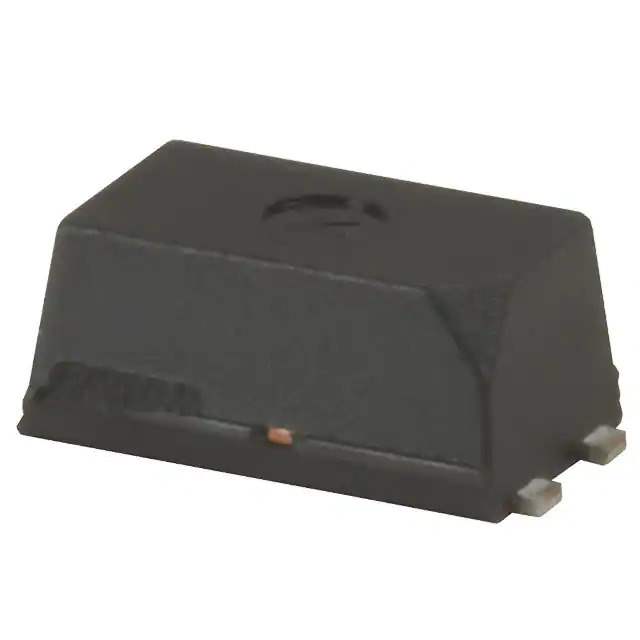

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Bulk
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.1VDC
Voltage - Load 0 V ~ 40 V
Load Current 250 mA
On-State Resistance (Max) 1.6 Ohms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.165", 4.20mm)
Supplier Device Package 4-Ultra Small Flatlead
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657151-PS7802-1A-A
Ultra Librarian 3D Model Ultra Librarian PS7802-1A-A CAD Model

Description

The PS7802-1A-A is a solid-state relay from the PS series by CEL.

  • It is designed for use in various electronic applications that require high-performance switching of AC or DC loads.
  • Configuration: single-pole, single-throw normally open (SPST-NO)
  • Maximum On-State Resistance: 1.6 Ohms
  • Load Current: up to 250 mA
  • Voltage Range: 0 V to 40 V
  • Mounting Type: surface mountable
  • Package: compact 4-SMD package and is supplied in bulk packaging.
  • Status: obsolete product, but it still offers reliable performance for applications that require a solid-state relay with these specifications.
