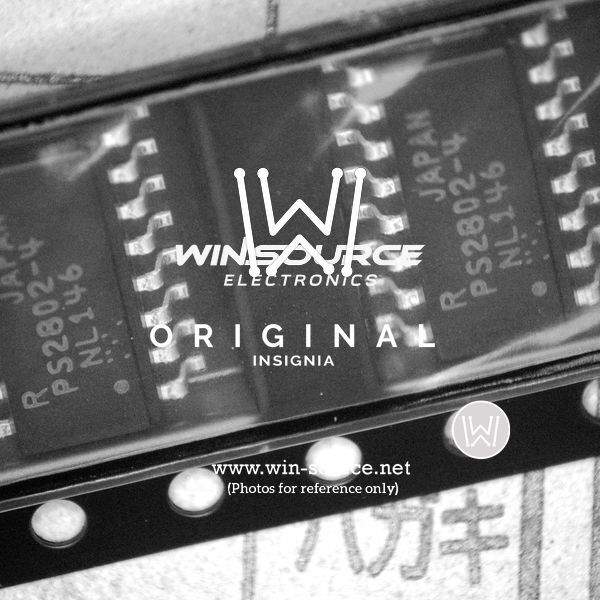

PS2802-4-A Real Image PS2802-4-A real image4958
Same model may have multiple batches, images only for reference.
PS2802-4-A Real Image PS2802-4-A real image4958
PS2802-4-A Real Image PS2802-4-A real image4958
Same model may have multiple batches, images only for reference.

PS2802-4-A

Part No PS2802-4-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 2.5KV 4CH DARL 16SOIC
Datasheet
PS2802-4-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 200% @ 1mA
Rise and Fall Time 200μs, 200μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 40V
Channel Output Current 100mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 16-SSOP
Win Source Part Number 045935-PS2802-4-A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS2802-4-A CAD Model

Description

The CEL PS2802-4-A is a Darlington output optocoupler that is designed for use in high-speed switching applications.

  • Product Name: CEL PS2802-4-A
  • Output Type: Darlington
  • Application: Designed for use in high-speed switching applications.
  • Channel Count: Four
  • Ideal For: Motor control, power supply, and other industrial applications.
  • Isolation Voltage: High
  • Temperature Range: -55°C to 100°C
  • Reliability: A reliable choice for your electronic components needs.
