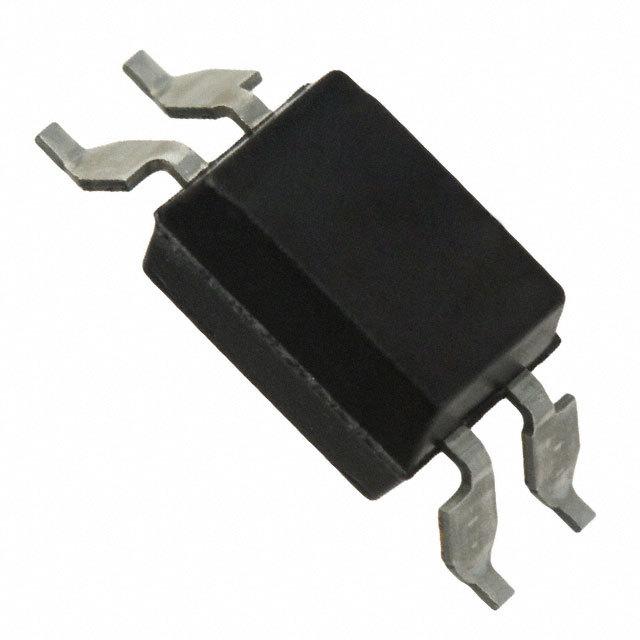

PS2561AL2-1V-W-A

Name: PS2561AL2-1V-W-A
Brand: CEL
SKU: 280929
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PS2561AL2-1V-W-A
Manufacturer	CEL
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 5KV TRANS 4SMD
Datasheet	PS2561AL2-1V-W-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	CEL
Packaging	Tube/Rail
Status	Active
Number of Channels	1
Isolation Voltage	5000Vrms
Minimum DC Current Transfer Ratio	130% @ 5mA
Maximum DC Current Transfer Ratio	260% @ 5mA
Rise and Fall Time	3μs, 5μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	70V
Channel Output Current	30mA
Forward Voltage	1.2V
Continuous forward current- Max	30mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-SMD
Win Source Part Number	280929-PS2561AL2-1V-W-A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PS2561AL2-1V-W-A CAD Model

Description

The PS2561AL2-1V-W-A is an isolation amplifier manufactured by CEL.

Output Type: Transistor
Input: DC
Isolation Voltage: 5000Vrms
Minimum DC Current Transfer Ratio: 130% @ 5mA
Popularity: Medium
Supply and Demand Status: Balanced
Package: 4-SMD
Temperature Range: -55°C to 100°C
