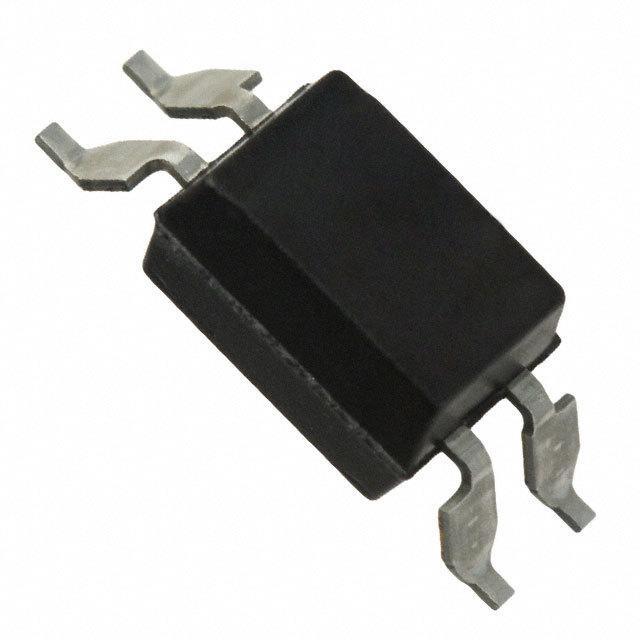

PS2561AL2-1-V-F3-L-A CEL
Same model may have multiple batches, images only for reference.

PS2561AL2-1-V-F3-L-A

Part No PS2561AL2-1-V-F3-L-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD / DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R
Datasheet
PS2561AL2-1-V-F3-L-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 50% @ 5mA
Current Transfer Ratio (Maximum) 400% @ 5mA
Rise / Fall Time (Typ) 3μs, 5μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Output Current per Channel 30mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 30mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SMD
Win Source Part Number 792502-PS2561AL2-1-V-F3-L-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS2561
Introduction Date November 01, 2001
ECCN EAR99
Country of Origin Japan, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS2561AL2-1-V-F3-L-A CAD Model

Description

The PS2561AL2-1-V-F3-L-A is an isolator manufactured by CEL.

  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 100°C
  • Input Type: DC
  • Output Type: Transistor
  • Rise/Fall Time: 3μs, 5μs
  • Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 70V
  • Current Transfer Ratio: 50% to 400% @ 5mA
  • Vce Saturation: 300mV
