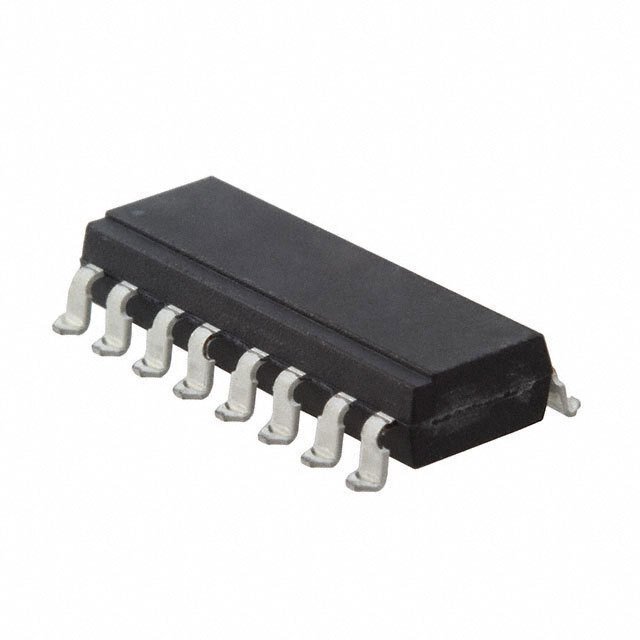

PS2506L-4-A CEL
Same model may have multiple batches, images only for reference.

PS2506L-4-A

Part No PS2506L-4-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV 4CH DARLINGTON 16SMD / Optocoupler AC-IN 4-CH Darlington DC-OUT 16-Pin PDIP SMD Magazine
Datasheet
PS2506L-4-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 200% @ 1mA
Rise / Fall Time (Typ) 100μs, 100μs
Input Type AC, DC
Output Type Darlington
Output Voltage MAX 40V
Output Current per Channel 160mA
Voltage - Forward (Vf) (Typ) 1.17V
Current - DC Forward (If) (Maximum) 80mA
Vce Saturation (Maximum) 1V
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 16-SMD, Gull Wing
Manufacturer Package 16-SMD
Win Source Part Number 792494-PS2506L-4-A
Popularity Medium
Supply and Demand Status Limited
Family Name PS2506L-4
Introduction Date November 01, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PS2506L-4-A CAD Model

Description

The PS2506L-4-A from CEL is a quad-channel optocoupler.

  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 200% @ 1mA
  • Forward Voltage: 1.17V
  • Vce Saturation: 1V
  • Package: 16-SMD, Gull Wing
  • Mounting: SMD
