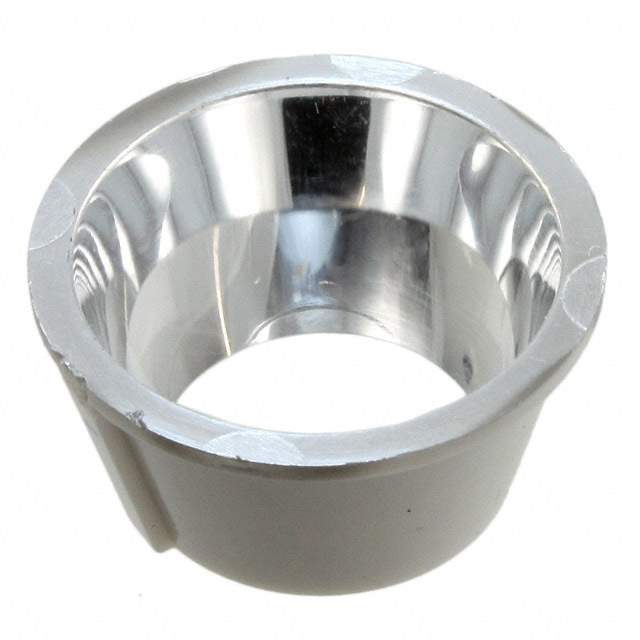

10170 Real Image
Same model may have multiple batches, images only for reference.

10170

Part No 10170
Manufacturer Carclo Technical Plastics
Catalog Optics - Reflectors
Description OPTIC REFLECTOR 20MM WIDE ANGLE
Datasheet
10170 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Reflectors
Mfr Carclo Technical Plastics
Package Bulk
Product Status Active
Style/Size Round, 20mm
Optical Pattern Wide
For Use With/Related Manufacturer Cree, Lumileds, Osram, Seoul
Viewing Angle 69° ~ 81°
Mounting Type Adhesive
Standard Package 48 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8539.90.0000
Win Source Part Number 905026-10170
Ultra Librarian 3D Model Ultra Librarian 10170 CAD Model

Description

The 905026-10170 is a reflector for optoelectronics applications.

  • Manufacturer: Carclo Technical Plastics
  • Package: Bulk
  • Standard Package Size: 48 pcs
  • Viewing Angle Range: 69° to 81°
  • Mounting Type: Adhesive
  • Optical Pattern: Wide
  • Compatible Products: Cree, Lumileds, Osram, and Seoul
  • ECCN: EAR99
  • REACH: Not affected
