Same model may have multiple batches, images only for reference.

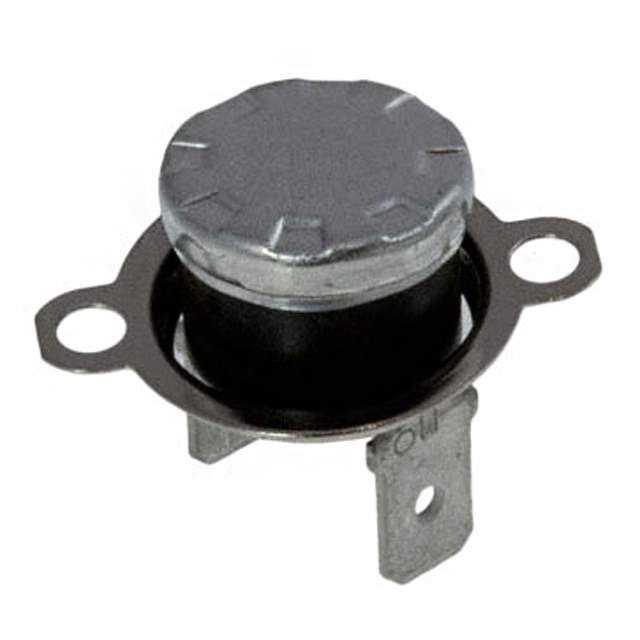

CS706525Z Real Image
Same model may have multiple batches, images only for reference.

CS706525Z

Part No CS706525Z
Manufacturer Cantherm
Catalog Temperature Sensors - Thermostats - Mechanical
Description THERMOSTAT 65DEG C SPST-NC CYL  /
Datasheet
CS706525Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Temperature Sensors - Thermostats - Mechanical - Industrial
Mfr Cantherm
Series R53
Package Bulk
Circuit SPST-NC
Switching Temperature 149°F (65°C)
Current Rating - AC 10A (250V), 15A (125V)
Current Rating - DC 10A (24V), 15A (12V)
Tolerance ±9°F (±5°C)
Switching Cycles 100K
Termination Style Quick Connect
Mounting Type Chassis Mount
Package / Case Cylinder with Mounting Flange
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 317-1520
Standard Package 100
Win Source Part Number 1169117-CS706525Z
Ultra Librarian 3D Model Ultra Librarian CS706525Z CAD Model

Description

The CS706525Z is a temperature sensor thermostat designed for use in industrial applications.

  • Switching Temperature: 149°F (65°C)
  • Tolerance: ±9°F (±5°C)
  • Circuit: SPST-NC
  • Switching Cycle: 100K
  • Package: Cylinder with Mounting Flange
  • Termination: Quick Connect
  • Current Rating (AC): 10A (250V) and 15A (125V)
  • Current Rating (DC): 10A (24V) and 15A (12V)
  • Mounting Type: Chassis Mount
  • Package: Bulk
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.30.8000
