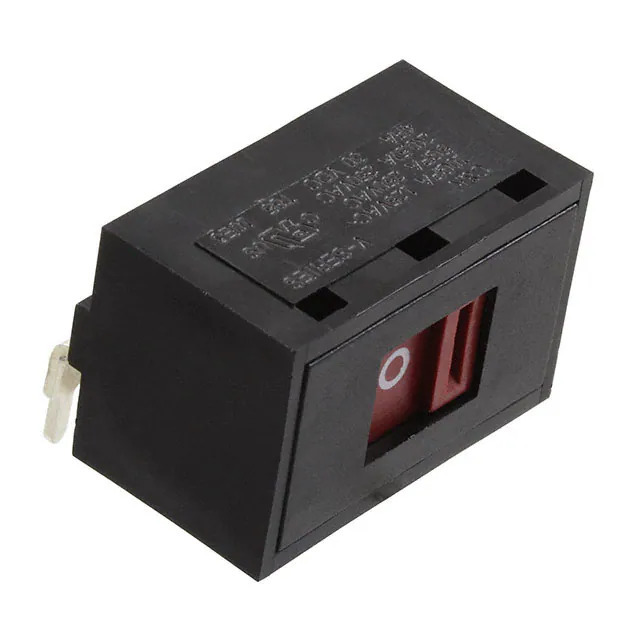

V70214MA08Q C&K Components
Same model may have multiple batches, images only for reference.

V70214MA08Q

Part No V70214MA08Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 10A 125V
Datasheet
V70214MA08Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series V
Package Tray
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 10A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features O - Marking
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyester, Glass Filled
Switch Travel -
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number V702
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376250-V70214MA08Q
Ultra Librarian 3D Model Ultra Librarian V70214MA08Q CAD Model

Description

The V70214MA08Q is a slide switch from C&K's V series.

  • Series: V
  • Actuator Type: Screwdriver Slot
  • Switch Function: On-On
  • Circuit: SPDT
  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 10A (AC), 4A (DC)
  • Termination Style: PC Pin
  • Mounting Type: Through Hole, Right Angle
  • Actuator Material: Polyester and Glass-Filled
  • Electrical Life: 10,000 Cycles
  • Operating Temperature: -30°C to 85°C
