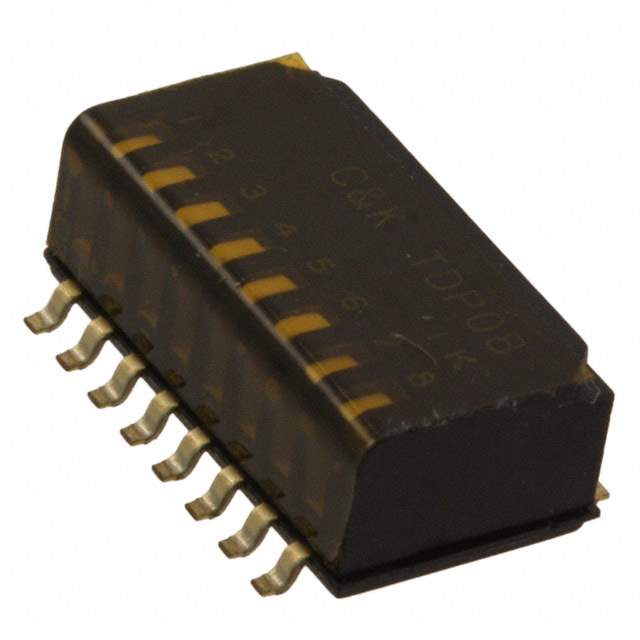

TDP08H0SB1 Real Image
Same model may have multiple batches, images only for reference.

TDP08H0SB1

Part No TDP08H0SB1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Datasheet
TDP08H0SB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr C&K
Series TDP
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.164" (4.17mm)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm) , Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS) , Glass Filled
Length 0.444" (11.28mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number TDP08H0S
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1338625-TDP08H0SB1
Ultra Librarian 3D Model Ultra Librarian TDP08H0SB1 CAD Model

Description

The C&K Components TDP08H0SB1 is a DIP switch with 8 positions and a pitch of 0.050" (1.27mm) half.

  • Positions: 8
  • Pitch: 0.050" (1.27mm) Half
  • Termination Style: Gull Wing
  • Seal Feature: Tape
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.164" (4.17mm)
  • Switch Function: SPST
  • Actuator Type: Piano
  • Electrical Life: 1,000 Cycles
  • Mechanical Life: 1,000 Cycles
  • Washable: Yes
