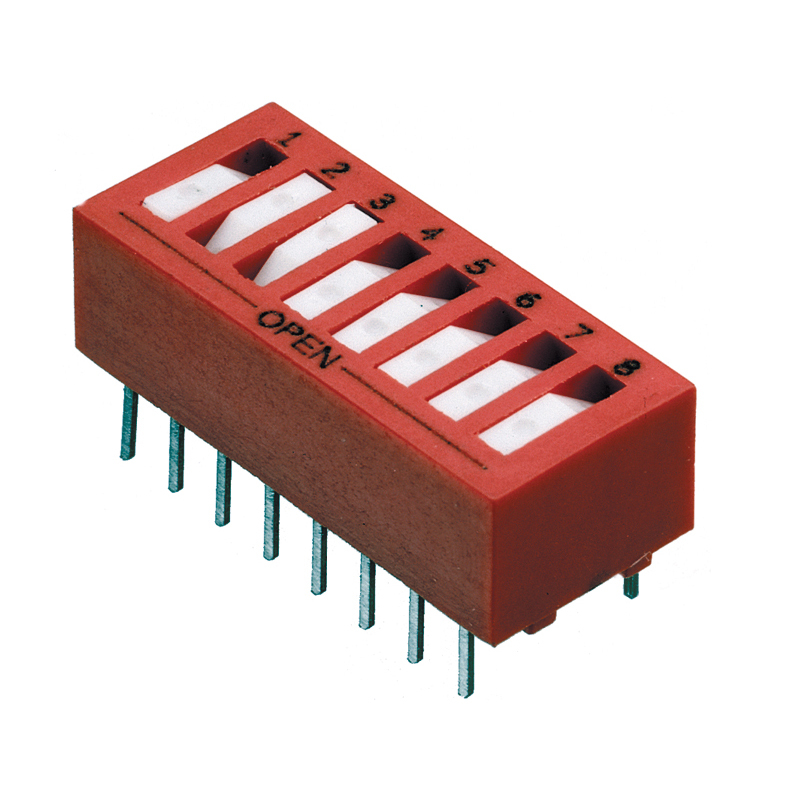

Same model may have multiple batches, images only for reference.

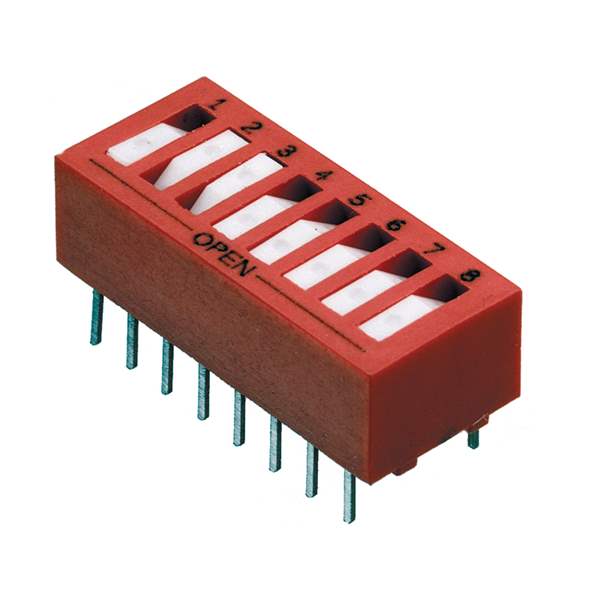

TDP06H1SBD1 C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TDP06H1SBD1

Part No TDP06H1SBD1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 0.025A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.161" (4.10mm)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Temperature Range - Operating -40°C ~ 85°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1552848-TDP06H1SBD1
Ultra Librarian 3D Model Ultra Librarian TDP06H1SBD1 CAD Model
