Same model may have multiple batches, images only for reference.

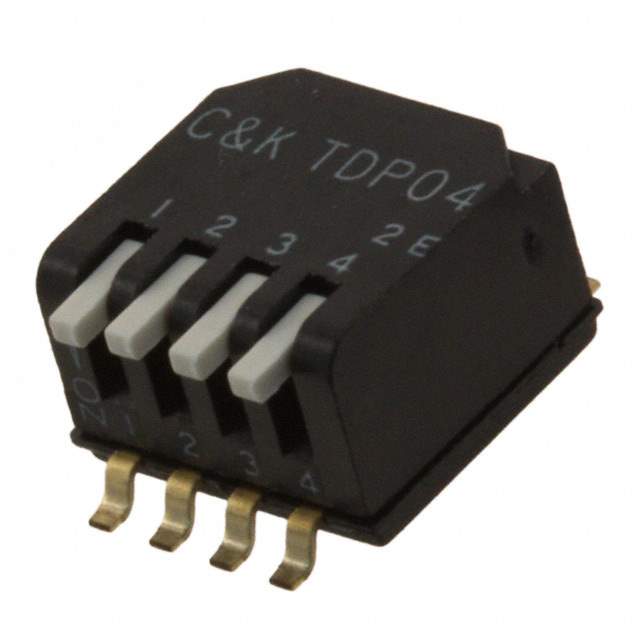

TDP04H1SBD1 Real Image
Same model may have multiple batches, images only for reference.

TDP04H1SBD1

Part No TDP04H1SBD1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V / Dip Switch SPST 4 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Datasheet
TDP04H1SBD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series TDP
Package Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.161" (4.10mm)
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS), Glass Filled
Length 0.244" (6.20mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number TDP04H1S
Other Names CKN9426,*TDP04H1SBD1
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233687-TDP04H1SBD1
Ultra Librarian 3D Model Ultra Librarian TDP04H1SBD1 CAD Model

Description

The TDP04H1SBD1 is a 4-position DIP switch from C&K's TDP series.

  • Manufacturer: C&K
  • Pitch: 0.050" (1.27mm), half
  • Termination Style: Gull wing
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.161" (4.10mm)
  • Length: 0.244" (6.20mm)
  • Body Material: Polyphenylene sulfide (PPS), glass filled
  • Circuit: SPST
  • Actuator Type: Piano
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Raised
  • Washable: No
  • Mounting: Surface mount, right angle
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Win Source Part Number: 1233687-TDP04H1SBD1
