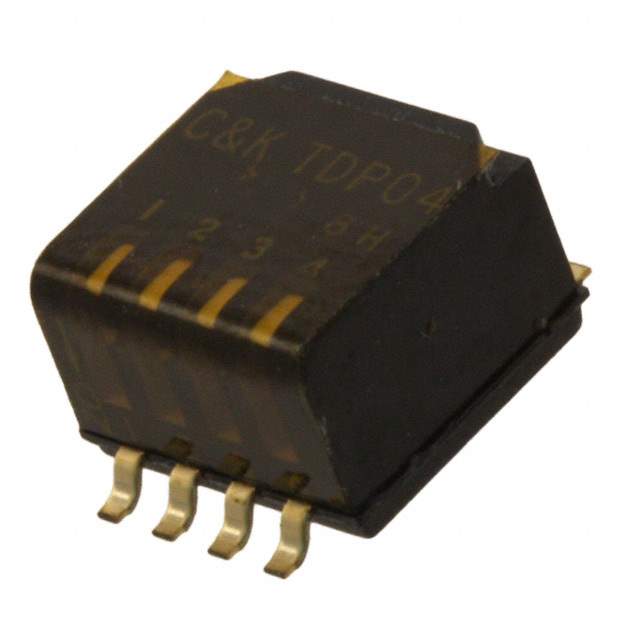

The TDP04H0SB1 is a 4-position switch from C&K. It has a pitch of 0.050" (1.27mm) and half termination style of gull wing. The switch is made of polyphenylene sulfide (PPS), glass filled body material and copper alloy contact material. It has a voltage rating of 24VDC and a current rating of 25mA. The switch is SPST circuit type and actuator type is piano. It has an electrical life of 1,000 cycles and a mechanical life of 1,000 cycles. The actuator level is flush, recessed and it is washable. The temperature range for operating is -40°C to 85°C. The switch is mounted through SMT, right angle and comes in a tube package. Its length is 0.244" (6.20mm) and height above board is 0.164" (4.17mm). The switch is ideal for use in switches category.

• Positions: 4
• Pitch: 0.050" (1.27mm)
• Termination Style: Gull Wing
• Body Material: Polyphenylene Sulfide (PPS), Glass Filled
• Contact Material: Copper Alloy
• Voltage Rating: 24VDC
• Current Rating: 25mA
• Circuit Type: SPST
• Actuator Type: Piano
• Electrical Life: 1,000 Cycles
• Mechanical Life: 1,000 Cycles
• Actuator Level: Flush, Recessed
• Washable: Yes
• Operating Temperature: -40°C to 85°C
• Mounting: SMT, Right Angle
• Package: Tube
• Length: 0.244" (6.20mm)
• Height Above Board: 0.164" (4.17mm)
