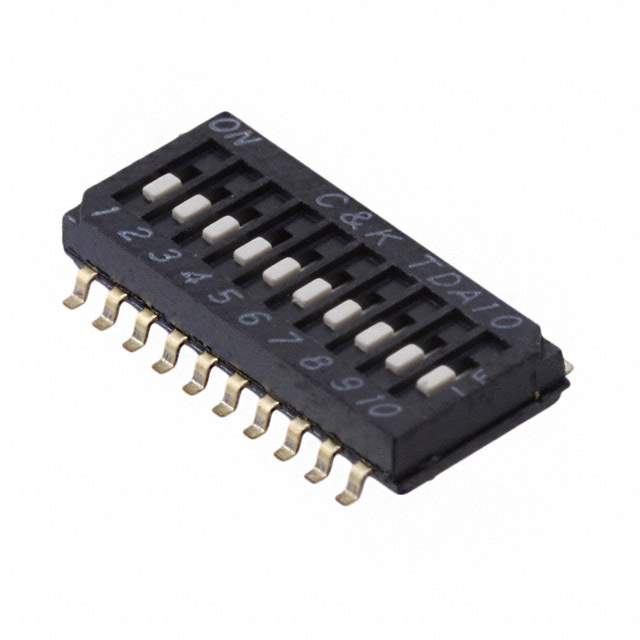

TDA10H0SB1R Real Image
Same model may have multiple batches, images only for reference.

TDA10H0SB1R

Part No TDA10H0SB1R
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Switch DIP OFF ON SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD T/R
Datasheet
TDA10H0SB1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Series TDA
Packaging Reel package
Circuit SPST
Number of Positions 10
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.544" (13.82mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 796516-TDA10H0SB1R
Popularity Medium
Supply and Demand Status Limited
Family Name TDA
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TDA10H0SB1R CAD Model

Description

The C&K TDA Slide Switch is a high-quality electronic component manufactured by C&K.

  • Win Source Part Number: 796516-TDA10H0SB1R
  • Category: Switches
  • Popularity: Medium
