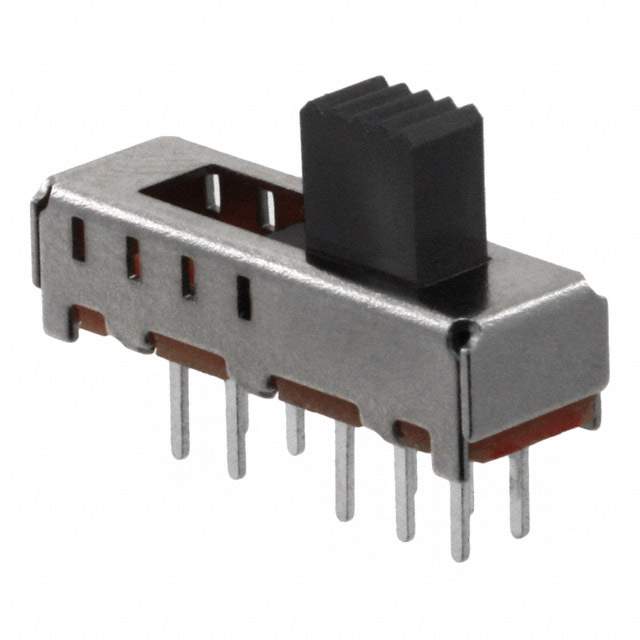

SS-24E06-TG 5 (P)

Part No SS-24E06-TG 5 (P)
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DP4T 300MA 30V / Slide Switch DP4T Through Hole
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series SS, COMAX
Package Bulk
Circuit DP4T
Contact Timing Shorting (MBB)
Switch Function On-On-On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.50mm
Electrical Life 10,000 Cycles
Operating Force 250gf
Base Product Number SS24E
Other Names SS24E06TG5P,SS24E06TG5(P),SS-24E06-TG5P,*SS-24E06-TG 5 (P),SS-24E06-TG5(P),CKN10394
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1232958-SS-24E06-TG 5 (P)
Ultra Librarian 3D Model Ultra Librarian SS-24E06-TG 5 (P) CAD Model

Description

The COMAX SS-24E06-TG5P is a slide switch manufactured under the SK series.

  • Circuit: DP4T
  • Switch Function: on-on-on-on
  • Voltage Rating: 30 V
  • Current Rating: 300mA (DC)
  • Contact Timing: shorting
  • Actuator Type: standard
  • Actuator Length: 5.00mm
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
  • Mounting Type: through-hole
  • Temperature Range: -20°C to 70°C
