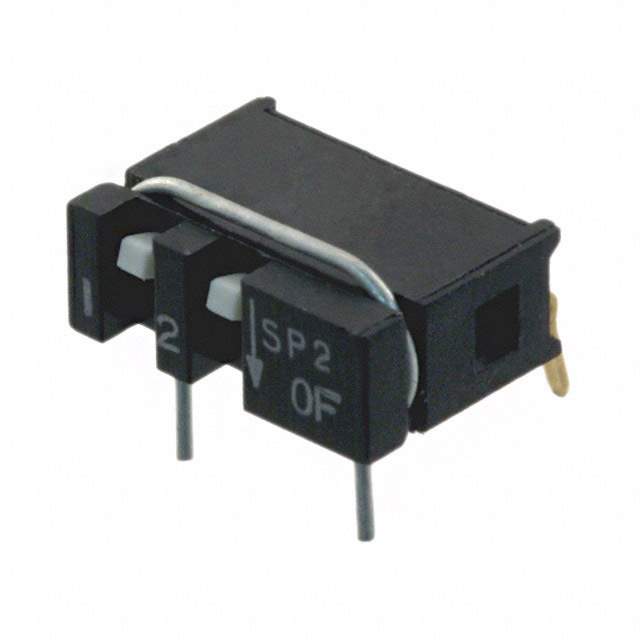

SPA02AB Real Image
Same model may have multiple batches, images only for reference.

SPA02AB

Part No SPA02AB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 2 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC
Datasheet
SPA02AB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SPA
Circuit SPST
Number of Positions 2
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 60°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.342" (8.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names -SPA02AB,CKN9437,*SPA02AB
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233692-SPA02AB
Ultra Librarian 3D Model Ultra Librarian SPA02AB CAD Model

Description

The SPA02AB is a 2-position DIP switch from C&K's SPA series.

  • Manufacturer: C&K
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Full PC Pin
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Body Material: Polyphenylene Sulfide (PPS)
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Height Above Board: 0.169" (4.30mm)
  • Length: 0.342" (8.68mm)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Mounting Type: Through hole, right angle
  • Temperature Range: -30°C ~ 60°C
