Same model may have multiple batches, images only for reference.

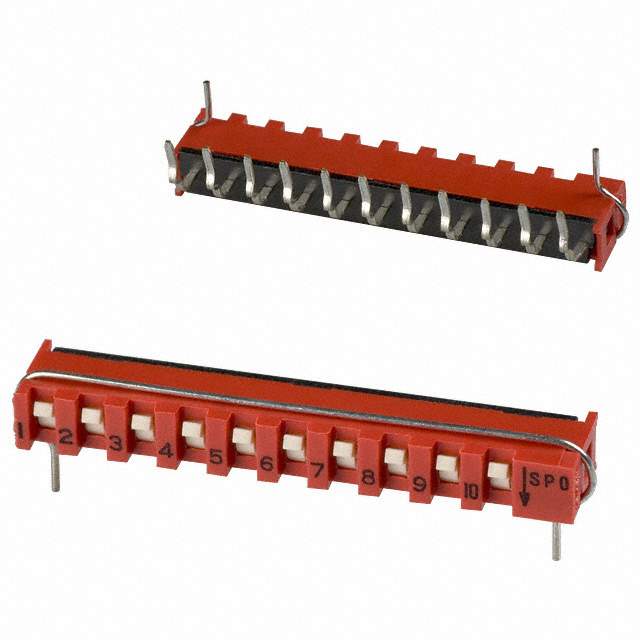

SP10A Real Image
Same model may have multiple batches, images only for reference.

SP10A

Part No SP10A
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 10 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC
Datasheet
SP10A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 10
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 1.098" (27.89mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names *SP10A,CKN1361
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233703-SP10A
Ultra Librarian 3D Model Ultra Librarian SP10A CAD Model

Description

The SP10A DIP switch is a single-pole, single-throw (SPST) circuit switch designed for use in a variety of applications.

  • Manufacturer:
  • Circuit: Single-Pole, Single-Throw (SPST)
  • Actuator Type: Slide
  • Actuator Level: Flush/Recessed
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Washable: Yes
  • Operating Temperature: -20°C to 85°C
  • RoHS: Compliant
