Same model may have multiple batches, images only for reference.

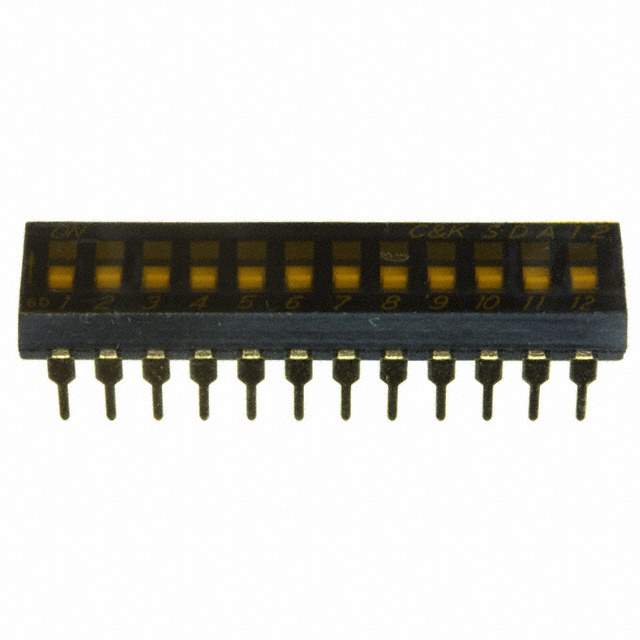

SDA12H0B Real Image
Same model may have multiple batches, images only for reference.

SDA12H0B

Part No SDA12H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 12 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA12H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 12
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.183" (4.65mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.279" (32.50mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA12H
Other Names CKN6104,*SDA12H0B,2266-SDA12H0B
Standard Package 14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233773-SDA12H0B
Ultra Librarian 3D Model Ultra Librarian SDA12H0B CAD Model

Description

The C&K SDA series DIP switch is a SPST circuit switch with a slide (standard) actuator type.

  • Positions: 12
  • Pitch: 0.100" (2.54mm), full
  • Switch Part Number: SDA12H0B
  • Part Number: 1233773
  • Package: Tube
  • REACH: Unaffected
  • HTSUS: 8536.50.9065
  • Current Rating: 25mA
  • Base Product Number: SDA12H
  • Height Above Board: 0.183" (4.65mm)
  • Length: 1.279" (32.50mm)
  • Washable: Yes
  • Operating Temperature Range: -40°C to 85°C
