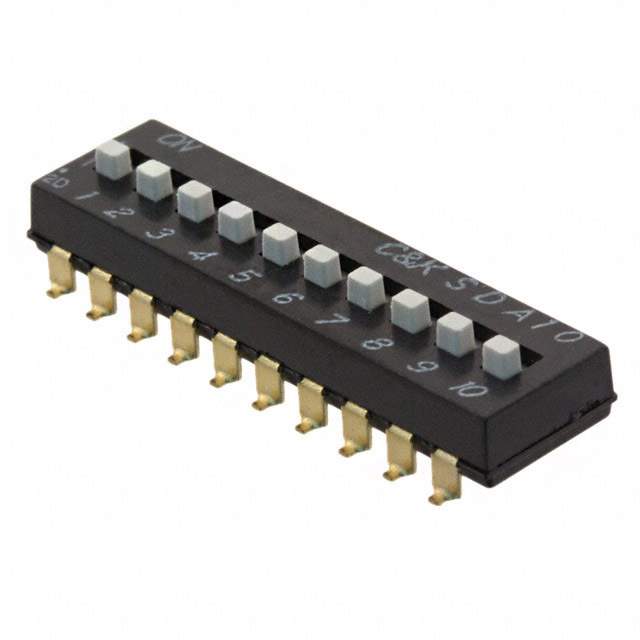

SDA10H1SBD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.076" (27.34mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA10H
Other Names *SDA10H1SBD,CKN6103
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233777-SDA10H1SBD
Ultra Librarian 3D Model Ultra Librarian SDA10H1SBD CAD Model

Description

The C&K SDA10H1SBD is a 10-position SPST slide DIP switch with a pitch of 0.100" and a gull wing termination style.

  • Manufacturer: C&K
  • Positions: 10
  • Circuit: SPST
  • Actuator Type: Slide
  • Pitch: 0.100"
  • Termination Style: Gull Wing
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Actuator Level: Raised
  • Washable: No
  • Body Material: Polyphenylene Sulfide (PPS)
  • Contact Finish: Gold
  • Electrical Life: 1000 cycles
  • Mechanical Life: 1000 cycles
  • Temperature Range: -40℃ to 85℃
  • ECCN: EAR99
